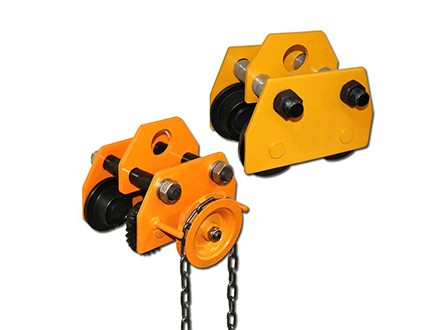

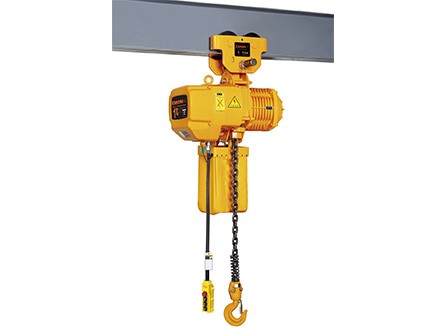

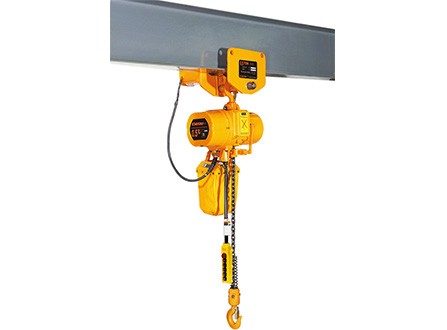

Electric Chain Hoist With Manual Trolley

Electric chain hoist is a light and small lifting equipment, with compact structure, light weight, small volume, parts universal, easy to operate and other advantages. Reducer adopts hard tooth surface transmission design, long life, high mechanical efficiency. The motor uses a conical rotor brake motor and has up and down two-way safety limit device. Electric chain hoist can be widely used to lift heavy objects or installed in the single beam crane, straight line, curve of the I-beam, can also be used for hoist double beam, hoist gantry crane or cantilever hanging, is the industrial and mining enterprises, railways, docks, warehouses commonly used lifting equipment .

Main Features

  • 1.The motor and reducer housing are made of high quality die-cast aluminum alloy, light and strong, with good heat dissipation performance and fully sealed design, suitable for use under severe working conditions.
  • 2. It adopts YEP series of lateral magnetic brake motors. The main components of the motors are precision machined, and the lateral magnetic brake is checked by dynamic balance to ensure that the motors are low in noise, safe and reliable.
  • 3.Gear of reduction mechanism adopts high quality alloy steel, after heat treatment such as carburizing, quenching and tempering, the accuracy reaches ISO7 level, ensuring low noise and high efficiency of gear transmission.
  • 4.Inverse phase protection device: it is a special electrical device, which can make the electrical appliance unable to operate when the three-phase wiring of the power supply is wrong, ensuring the safety of use.
  • 5.Limit switch: when the hook reaches the upper limit position and the lower limit position, the limit switch makes the motor stop automatically to ensure the safe and reliable operation of the whole machine.
  • 6.The operating voltage is the safe voltage 24V/36V stipulated by the state to prevent accidents.
  • 7.Side magnetic brake, which can brake instantly when the power is cut off, ensures safe and reliable use .
  • 8.The chain bag is light, beautiful and durable .
  • 9.Chain: Imported FEC80 alloy steel chain with super heat treatment.
  • 10.Hook: hot forging, high strength, not easy to break.The lower hook can be rotated 360° with safety tongue attached to ensure safe operation.

Parameter

Product Model

Electric chain hoist

Lifting Capacity

0.1-60 ton

Lifting height

3m-120m

Working grade

M4

Control method

Ground control, remote control

Note: it can also be customized .



Applications

Electric chain hoist use range is very wide, mainly used in the large plant, warehouse, wind power, logistics, dock, construction and other industries, used for lifting or loading and unloading goods, can also be lifted to facilitate work or repair large machinery. Electric chain hoist is controlled by the operator with the button on the ground, but also can be controlled in the control room or wired (wireless) remote control. The loop chain electric hoist can not only be fixed for suspension use, but also can be used with electric monorail trolley and hand push/pull monorail trolley for walking use.
