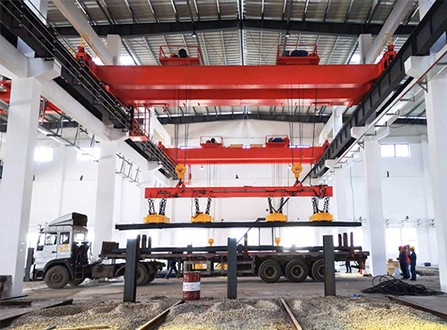

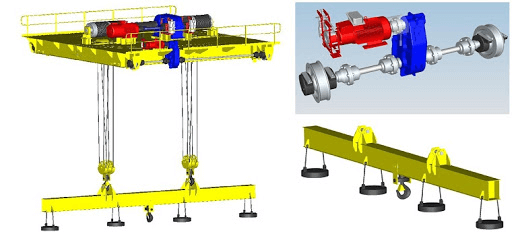

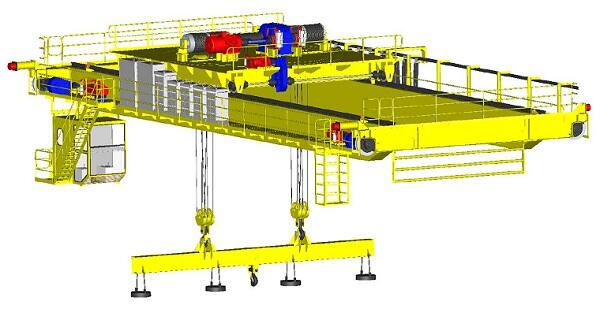

Electromagnetic overhead crane with carrier-beam takes the magnetic chuck as sling crane equipment, the direction of carrier-beam is divided into parallel to the main girder and perpendicular to the main girder, and under the bottom of the carrier-beam is equipped with magnetic chuck, the crane complete the handling work by the electromagnetic chuck .

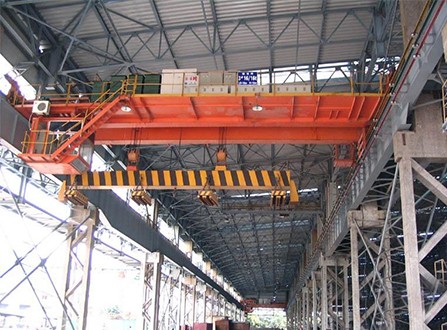

The electromagnetic overhead crane with carrier-beam is suitable for steel factory warehouse, used for handling the steel plate, scrap, etc., It is allowed in the absence of fire and explosion danger and corrosive environment, it is forbidden used for lifting molten metal, toxic, flammable items . The lifting capacity of the crane includes the dead weight of the electromagnet, the total weight of the crane does not include the dead weight of the electromagnet.
| Electromagnetic Overhead Crane With Carrier-beam | ||||||||||||||||||||||
| Capacity（ton） | 15 | 20 | 32 | 20+20 | ||||||||||||||||||
| Span (m) | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | 22.5 | 25.5 | 28.5 | 31.5 | 34.5 | ||
| Lifting Height (m) | 16 | 16 | 16 | 16 | ||||||||||||||||||
| Working Duty | A6 | A6 | A6 | A6 | ||||||||||||||||||
|
Speed |
Lifting Speed | m/min | 13.2 | 12.6 | 12.5 | 11.7 | ||||||||||||||||
| Trolley Travelling Speed | 36.7 | 36.2 | 37 | 37.5 | ||||||||||||||||||
| Crane Travelling Speed | 101.4 | 89 | 87.3 | 87.3 | ||||||||||||||||||
| Max. Wheel Load (Kn) | 175 | 190 | 203 | 215 | 230 | 215 | 228 | 240 | 249 | 259 | 305 | 322 | 332 | 345 | 357 | 358 | 375 | 388 | 405 | 425 | ||
| Total Power | 63 | 71 | 111.3 | 128.5 | ||||||||||||||||||
| Recommend Rail Model | 43kg/m | 43kg/m | 43kg/m | QU100 | ||||||||||||||||||
| Note : the working duty can be designed A6 or A7 . If need A7 , pls advise . | ||||||||||||||||||||||

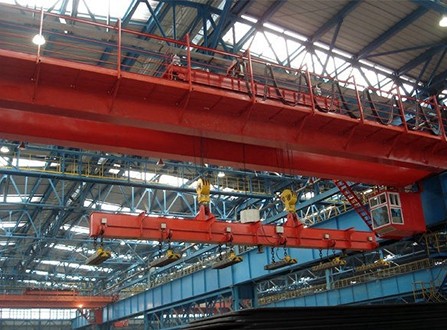

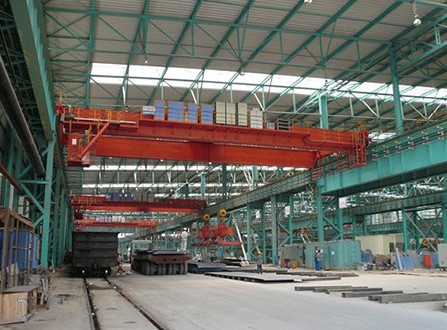

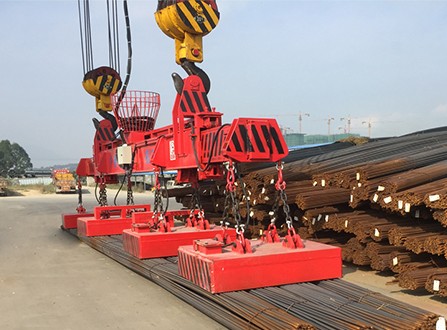

Electromagnetic Overhead crane with carrier-beam with detachable electromagnetic chuck, especially suitable for metallurgical plants in indoor or outdoor in fixed span between a heavy loading and unloading , it is widely used for handling with magnetic black metal products and materials (e.g., steel ingot, steel, pig iron block), it is also commonly used in the machinery factory, warehouse to handling steel materials, iron, scrap metal, scrap steel, iron and other materials.
