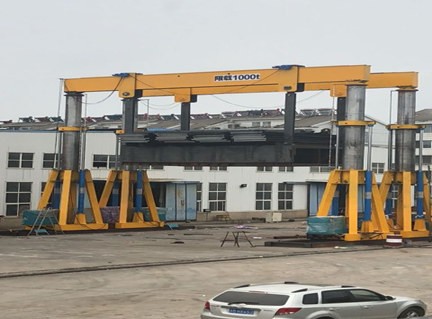

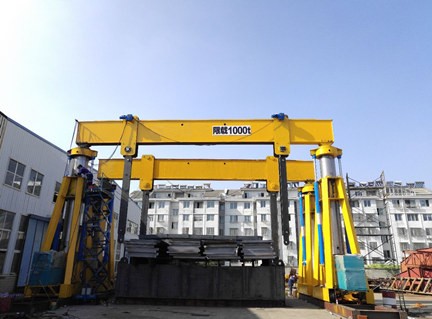

Hydraulic gantry crane is made up of hydraulic jack-up device , track, beams, hook, high-pressure tubing, hydraulic control station etc, it is easy to move, safety performance is outstanding, fast assembly and disassembly ， it is especially suitable for the lower plant and hoisting with shorter space, large stamping production line for truck factory installed (press, punch press), steel rough mill main motor installation, steel rolling plate lifting all kinds of large-scale machinery and equipment . Main techniques: Wireless remote control , folded transportation , with self-walking function , the maximum lifting height is 12 meters , the maximum lifting capacity is 1000 ton . The entire system is composed of 4 hydraulic lifting unit , track , cross girder , hook and wireless remote control .
| The Parameters of 500 ton Hydraulic Gantry Crane | ||
| Item | Details | |
| Working Pressure | 21MPa | |
| The Min. Height of Retract | 4800mm | |
| The Max. Height of Stretch | 12600mm | |
| Full Cylinder Stroke | 7800mm | |
| Load Capacity | The first stage | 500 ton up to 7500mm |
| The second stage | 500 ton up to 10200mm | |
| The third stage | 350 ton up to 12600mm | |
| Telescoping Speed | 560 ton | 15m/h |
| 350ton | 18m/h | |
| Lowing Speed | 25m/h | |
| Positioning Centre Distance | 915mm | |
| Dimensions of Base | Length:2714mm*Width:1380mm | |
| Walking Drive Mode | Hydraulic motor | |
| Travelling Speed | 25m/h | |
| Traverse Cylinder Stroke | 800mm | |
| The Diameter of Walking Wheel | 230mm | |
| Maximum Gradient | 0.5° | |
| Traverse Maximum Incliation | 0.5° | |
| Note：For other information and capacities , pls send us email . | ||

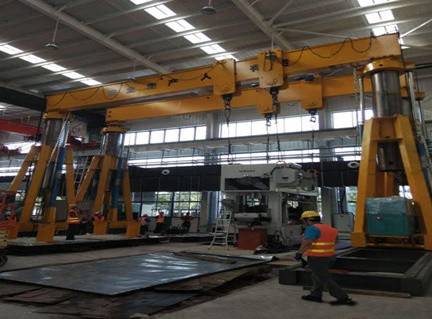

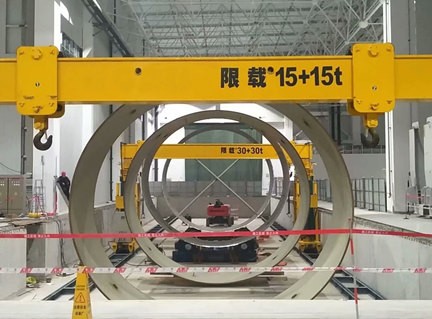

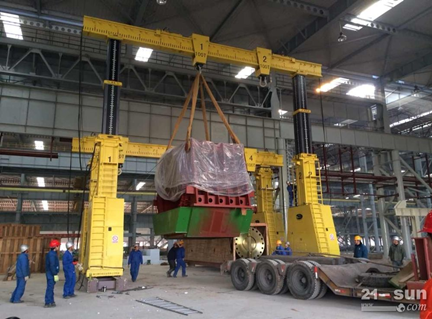

It is especially suitable for the movement and hoisting of large equipment under the condition of narrow space and limitation. Especially suitable for the shorter of the plant and lifting space smaller venues construction, such as large stamping production line for car factory installed (press, punch press), steel roughing main motor installation, steel rolling plate and other kinds of hoisting of large mechanical equipment, petrochemical tower drum lifting, installation of large transformer, large steam turbine and generator stator lifting, etc.
