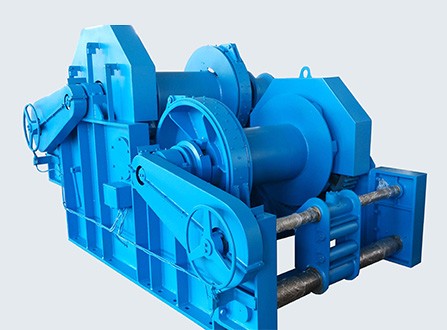

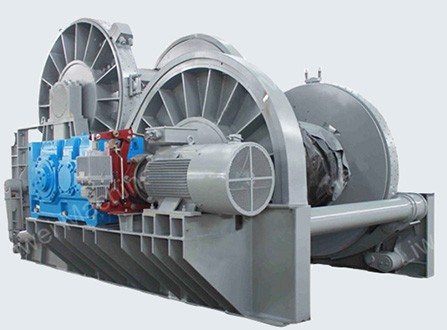

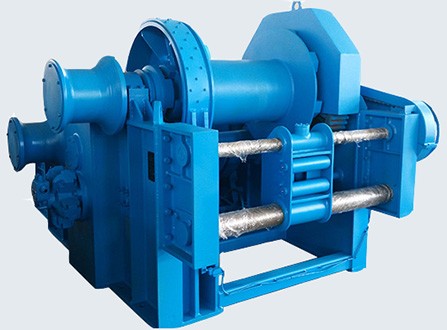

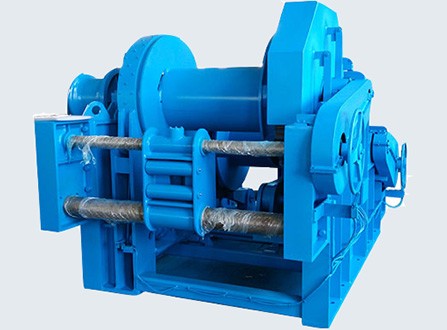

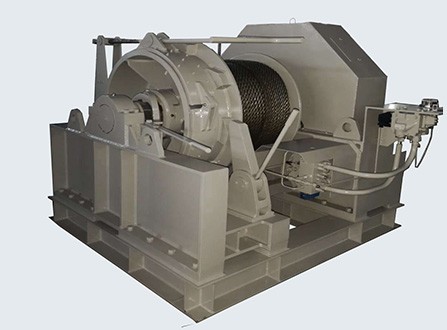

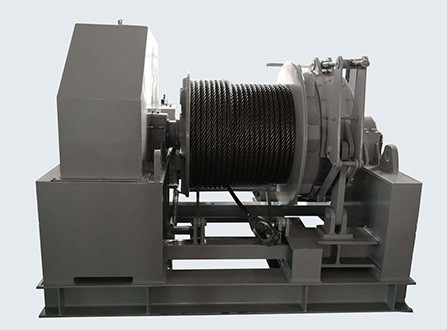

The positioning mooring winch is mainly used for offshore working vessel or drilling platform , according to the location working conditions , the following positioning ways are widely used .
- Four points positioning
- Six points positioning
- Eight points positioning.
- Twelve points positioning

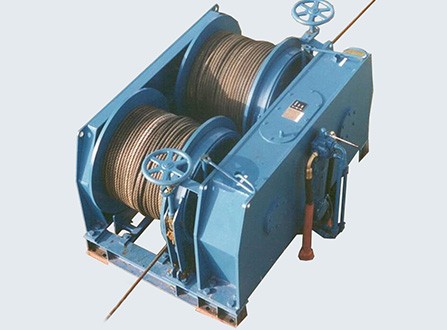

Single drum and double drum are available , the waterfall structure is widely used with double drum .It can be driven by hydraulic , diesel or electric , we can design it as the customers’ requirements . Hydraulic driven is with stepless speed , electric driven is single speed , VFD motor is an optional to fulfill the variable speed .
Remote centralized control system is available for both hydraulic positioning winch and electric positioning winch system .
Rope length and tension can be displayed on screen as option .
Constant tension and centralized control system are option .
If need more information , Pls contact us .
| Positioning Mooring Winch | |||||
| No. |
Drum Load (Kn) |
Nominal Speed (m/min) |
Holding Load (Kn) |
Dia. Of rope (mm) |
Rope Capacity (m) |
| 1 | 30 | 15 | 90 | 16 | 150 |
| 2 | 40 | 15 | 120 | 18 | 150 |
| 3 | 50 | 15 | 150 | 20 | 180 |
| 4 | 75 | 15 | 220 | 26 | 180 |
| 5 | 80 | 15 | 240 | 26 | 200 |
| 6 | 100 | 15 | 300 | 28 | 200 |
| 7 | 125 | 15 | 310 | 30 | 200 |
| 8 | 150 | 15 | 450 | 32 | 250 |
| 9 | 160 | 15 | 470 | 32 | 250 |
| 10 | 200 | 9.6 | 590 | 40 | 250 |
| 11 | 250 | 9.6 | 730 | 44 | 250 |
| 12 | 315 | 7.8 | 940 | 52 | 250 |
| 13 | 350 | 7.8 | 1050 | 54 | 250 |
| 14 | 400 | 7.8 | 1080 | 56 | 250 |
| Note : Other Non-standard Design , Pls Contact Us Freely . | |||||
Engineering vessel .
Drilling platform etc .
