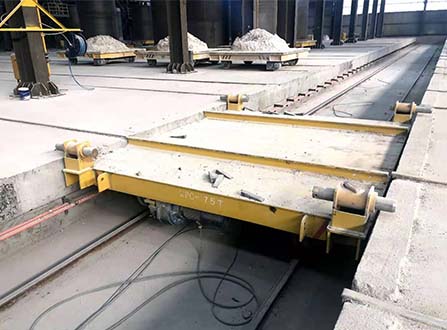

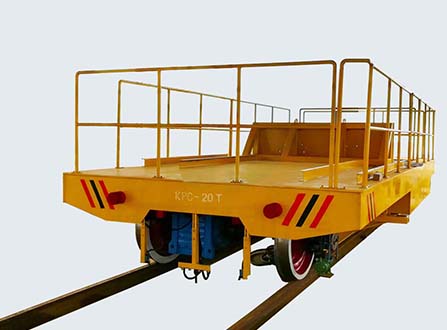

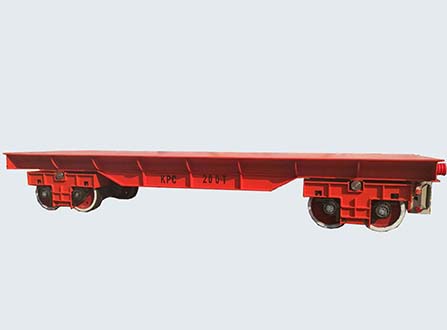

KPC series rail transfer cart is powered by conductor, the AC 380V is introduced to the AC electrical control system of the transfer cart via the sliding wire .The transfer cart has the following actions , start , stop , go forward and backward on the rail . The transfer cart gets power from the moving collector that fixed on the transfer cart .The sliding wire can be installed in the middle of rails or trench outside the rail , to ensure safe and convenient the cover can be installed above the trench , the transfer cart gets the power from the sliding wire through the automatic turning device . The control voltage is 36V, the hydraulic lifting system can be installed on the transfer cart .
This series transfer cart can be used in harsh environment , high temperature working conditions, it is preferred in workshop flow line because the simple structure , low requirements on rails and low cost .It is suitable to be used shorting running distance , high frequency of use , low cart’s height and assembly line work .
1.Simple structure , convenient to be used , high mechanic strength and loading capacity
2.Good stability , no permanent distortion .
3.Capacity is up to 500 ton .
4.Continuous working , there’s no time limitation .
5.Three-in-one drive DC motor , easy to maintenance.
6.Soft start ,Schneider frequency inverter.
7.Warning alarm , anticollision radar , travelling limiter, multiple protection .
8.Multiple operation method: hand pendant cable , radio remote control , roker wireless remote controller .
9.Functional customization: Frequency conversion startup, Explosion-proof occasion, Hydraulic Lifting function,
Rollover function, Mesa precision, Fixed-point stop, Scanning radar, positioning accuracy, anti rollover, Load-bearing
function, Climbing, Track turning, waterproof treatment, traverse unit, Aisle fork etc .
| KPC Rail Transfer Cart Powered by Slide Wire | ||||||||||||||
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
|
Table Size (mm) |
Length | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 | |
| Wheel Quantity(pc) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(m/min) | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max. Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.5 | 26.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU80 | QU100 | |
| Note: 1.Load capaicty , table size and rail inner gauge can be customized . | ||||||||||||||
| 2.Optional device : Seamless sliding line , multipole sliding line . | ||||||||||||||
| 3.Automatic stop when detecting obstacle or person, travelling limit switch . | ||||||||||||||
| 4.Operation method: a .hand held control pendant b.remote radio control c. frequency conversion stepless . | ||||||||||||||
| 5. Can be designed in harsh environment , such as the high temperature etc . | ||||||||||||||
The cable drum power electric transfer trolley is widely used in foundry factory , warehouse , steel plant , aluminum factory , plastic pipes factory , metallurgy , shipyard , coal , mining ,mold industry , processing industries etc .
