Hydraulic Windlass and Mooring Winch

Get Price Send Email
Main Features
Parameters
Application
Related Cases
Related Products
Get In Touch

Main Features

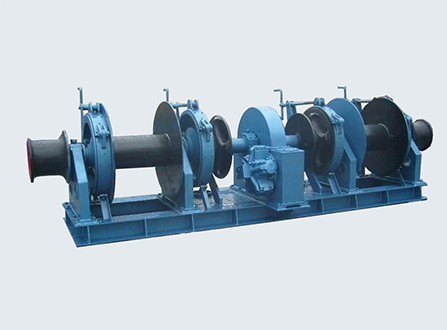

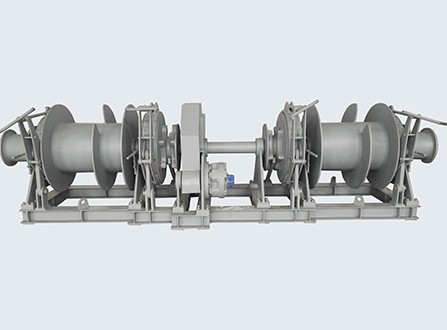

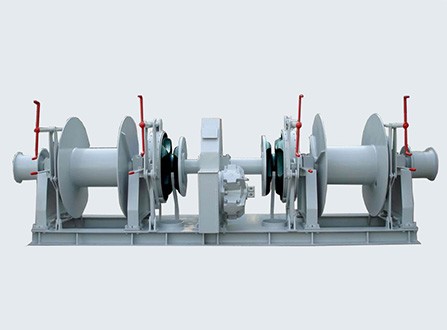

  • Windlass and Mooring Winch is mainly for anchor lifting and mooring purpose . It is mainly composed by the gypsy wheel, cable drum and warping heads , The power source can be electric , hydraulic , diesel or pneumatic , the brake and clutch can be manual, hydraulic or pneumatic . It has various of structure model and can be customized according to the working conditions , two types are widely used , single windlass and mooring winch or symmetric windlass and mooring winch . The control method can be close control or remote control in wheelhouse . Constant tension system can be as an option . The design standard can be CCS,BV,ABS,GL,RS,IRS etc.

Parameter

Hydraulic Windlass and Mooring Winch
No. Specifications of Electric Windlass Chain Dia (mm) Working Load (Kn) Overload Pulling Force (Kn） Supporting Load (Kn) Nominal Speed (m/min) Drum Load (Kn) Nominal Speed (m/min) Rope Capacity (m) Warping Load (Kn)
AM2 AM3 AM2 AM3 AM2 AM3
1 ø17.5 17.5 13 14.6 19.5 21.9 80 115 9 10 10 φ11*100 8
2 ø19 19 15.3 17.2 23 25.8 95 135 9 15 10 φ13*100 10
3 ø20 20 17.9 20 26.9 30 110 157 9 20 10 φ13*100 10
4 ø22 22 20.6 23 30.9 34.5 126 180 9 20 15 φ15*100 15
5 ø24 24 24.5 27.4 36.8 41.1 149 214 9 20 15 φ15*100 20
6 ø26 26 28.7 32.1 43.1 48.2 175 250 9 20 10 φ22*100 20
7 ø28 28 33.3 37.2 50 55.8 202 289 9 20 10 φ22*100 20
8 ø30 30 38.3 42.8 57.5 64.2 231 330 9 30 10 φ22*100 30
9 ø32 32 43.5 48.6 65.3 72.9 261 374 9 30 9 φ20*120 30
10 ø34 34 49.1 54.9 73.7 82.4 294 421 9 40 9 φ20*120 30
11 ø36 36 55.1 61.6 82.7 92.4 329 470 9 30 12 φ20*120 30
12 ø38 38 61.4 68.9 92.1 103.4 365 522 9 40 15 φ22*150 40
13 ø40 40 68 76 102 114 402 576 9 40 9 φ22*150 40
14 ø42 42 75 83.8 112.5 125.7 442 632 9 40 15 φ22*150 50
15 ø44 44 82 92 123.5 138 483 691 9 50 15 φ26*200 50
16 ø46 46 89.9 100.5 134.9 150.8 526 753 9 50 18 φ26*200 50
17 ø48 48 97.9 109.4 146.9 164.1 570 816 9 60 10 φ26*200 50
18 ø50 50 106.3 118.8 159.5 178.2 617 882 9 80 15 φ26*200 50
Note : Single Hydraulic Windlass and Mooring Winch . Other Non-standard Design , Pls Contact Us Freely.

Applications

Cargo Ship , Tankers etc.

Offshore

Platform

Dockside

Various types of vessels
