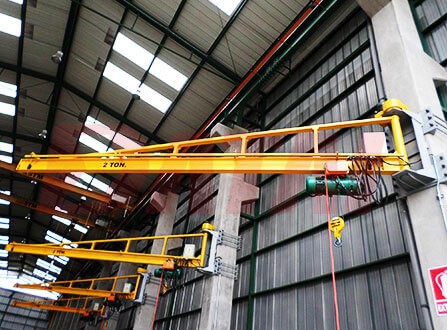

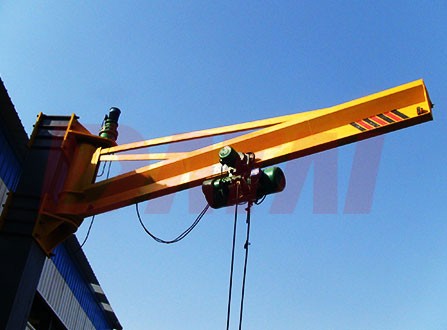

Wall Mounted Jib Crane

BX model wall mounted jib crane is small and medium lifting equipment , It has characteristics of unique structure , safe and reliable operation , high efficiency . It can be operated in the workshop or outdoor. It needs fixed on the column , the max. slewing angle can reach 270 degree.

Main Features

  • 1. Low maintenance cost , easy installation and operation.
  • 2. Soft start motor with IP55 grade.
  • 3. Shot blasting grade Sa2.5 and St3.
  • 4. Three layers painting , base painting ,middle painting and top layer 75μm -105μm.
  • 5. Welding line tested by the Ultrasonic detection.
  • 6. Schneider , Siemens , or ABB electronic.

Parameter

Product Model BB
Lifting Capacity 0.5-3 ton
Valid Radius 1m-8m
Lifting height 5m-10m
Working grade A3,A4
Control method Ground control, remote control

Applications

The product is widely used in plants, workshops , warehouses , material stocks to lift goods , It is prohibited to use the equipment in the combustible , explosive or corrosive environment.
