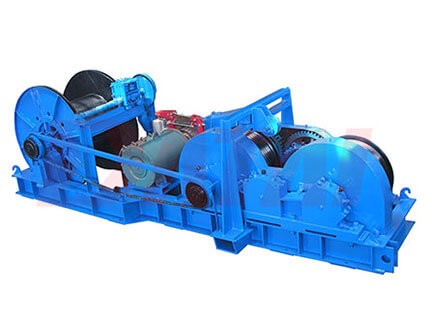

The dispatch mine winch adopts two-stage planetary gear transmission in structure, which the main shaft is arranged at both ends , which runs through the reel, and the left end is supported on the left bracket. The motor of the dispatch mine winch is fixed on the left bracket with flange disc. All equipped with explosion-proof motor and electrical, It is mainly used in the underground of mine shaft or on the ground loading dispatch marshal tramcars or in the middle roadway consignment tramcars and other auxiliary handling .It can be also used in mine ground , metallurgical mine or construction site for dispatching and other transportation work .The sinking mine winch has the characteristics of compact structure, good rigidity, high efficiency, convenient installation and movement, stable pneumatic, flexible operation, reliable braking and low noise.
| JZ Model Shaft Sinking Winch | ||||||||
|
Model/ Item |
JD-1 | JD-1.6 | JD-2 | JD-2.5 | JD-3 | JD-4 | ||
| Max static tension | 650m rope | KN | / | / | 22.4 (outlayer) | 22.4 (outlayer) | 25.3 (outlayer) | 40 |
| 400m rope | KN | 10 (outlayer) | 20 (outlayer) | 25 | 25 | 30 | 42.5 | |
| 300m rope | KN | 11.4 | 22 | 25.9 | 25.9 | 31.5 | 45 | |
| 200m rope | KN | 13.3 | 24 | 28.5 | 28.5 | 33 | 47.5 | |
| 100m rope | KN | 10 (outlayer) | 10 (outlayer) | 10 (outlayer) | 10 (outlayer) | 10 (outlayer) | 10 (outlayer) | |
| Dia. Of rope | mm | φ12 | φ16 | φ18 | φ20 | φ20 | φ22 | |
| Rope capacity | m | 400 | 400 | 400 | 400(650) | 400(651) | 650 | |
| Spec. of drum(dia*width) | mm | 225*303 | 300*356 | 620*580 | 620*580 | 620*581 | 580*600 | |
| Speed of rope | Max.speed (outlayer) | m/s | 1.03 | 1.2 | 1.2 | 1.63 | 1.63 | 1.54 |
| Min.speed (outlayer) | m/s | 0.43 | 0.6 | 0.6 | 1.12 | 1.12 | 0.95 | |
| Electric motor | Power | kw | 11.4 | 25 | 30 | 40 | 45 | 55 |
| Rotation | R/min | 1460 | 1470 | 1470 | 1470 | 1480 | 980 | |
| Voltage | V | As customers' requirements | ||||||
| Dimensions of winch | mm | 1100*765*730 | 1350*1140*1190 | 1350*1140*1190 | 1900*2350*1370 | 1900*2350*1370 | 2650*1965*2092 | |
| Weight | kg | 550 | 1460 | 1460 | 2800 | 2800 | 3650 | |
| Note：Other Non-standard Design , Pls Contact With Us . | ||||||||
