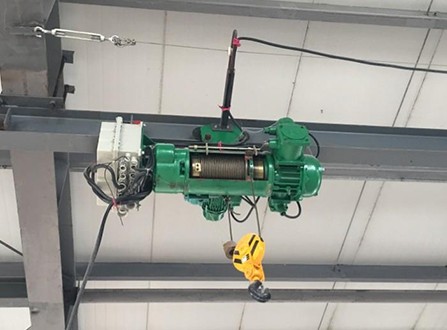

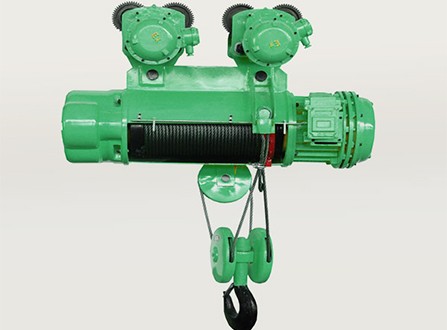

HB type explosion-proof electric wire rope hoist according to GB3836-2000 the rules of the design, manufacture and test, explosion-proof marks for d Ⅱ BT4 and d Ⅱ CT4, apply to A level for the ⅡA、ⅡB level, temperature classes for T1 - T4 group of combustible gas, steam and air form 1 zone and 2 zone of the sites with explosive air mixture. HB type explosion-proof wire rope electric hoist working environment: temperature -20℃ - +40℃;Below 1000m altitude; Relative humidity 85% (20±5℃).HB type explosion-proof electric hoist can be suspended on the I-beam track for straight line or curve operation, or installed on the fixed bracket to lift heavy objects . HB explosion-proof electric hoist can be used with single beam crane and double beam crane.
|
Model |
Explosion-proof hoist |
|
Lifting Capacity |
0.5-63 ton |
|
Lifting Height |
6m-30m |
|
Working Grade |
M3,M4 |
|
Control Methods |
Cable control , remote control |
With explosion-proof, anti-fog, dustproof, prevent sparks, high safety factor. Applicable to pharmaceutical, chemical, petroleum, coal, natural gas and other industries, reliable, high safety level.
