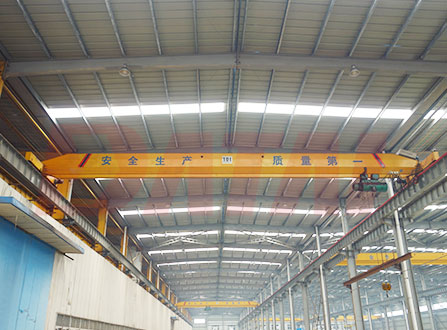

Single Girder Overhead Crane

LD Model single girder overhead crane is characterized by more reasonable structure and higher strength steel as a whole , used together with single speed hoist and double speed hoist, Electric hoist as a complete set , it is light duty crane with capacity of 1 ton to 20 tons . The span is 7.5meters to 28.5 meters . Working grad is A3-A4 . Working temperature is -25°C-40°C, The product has two operational methods , ground control and remote control.

Get Price Send Email

Main Features

Parameters

Application

Related Cases

Main Features

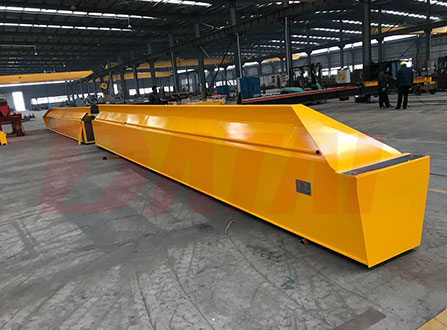

1. Reasonable design, strong box girder with rib plate.
2. Main girder and end truck one-time molding design.
3. Low maintenance cost , easy installation and operation.
4. Soft start motor with IP55 grade.
5. Shot blasting grade Sa2.5 and St3.
6. Three layers painting , base painting ,middle painting and top layer 75μm -105μm.
7. High strength strong bolts between end truck and main girder.
8. Welding line tested by the Ultrasonic detection.
9. Schneider , Siemens , or ABB electronic.

Parameter

Product Model	LD
Lifting Capacity	0.5-20 ton
Span	7.5m-28.5m
Lifting height	6m-20m
Working grade	A3,A4
Control method	Ground control, remote control

Applications

The product is widely used in plants, workshops , warehouses , material stocks to lift goods , It is prohibited to use the equipment in the combustible , explosive or corrosive environment.
