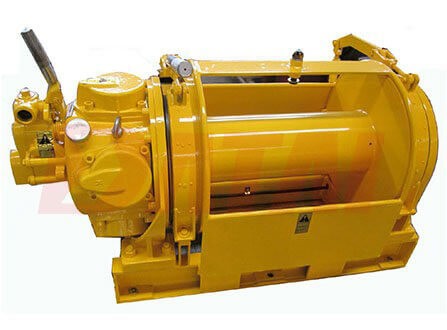

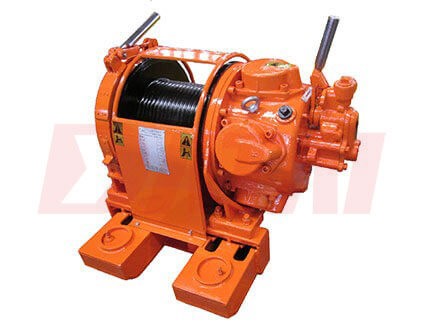

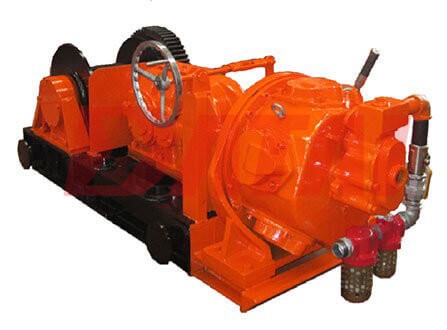

JQH series pneumatic winch is powered by pneumatic motor and driven by a gear reducer to pull the heavy weight or lift it . It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth operation and stepless variable speed .As explosion-proof traction, lifting equipment, especially suitable for oil fields, geological drilling, mining and explosive, flammable gas places .At present, this kind of product has been used in 1000 meters underground air return lane, lane drivage and other working face.

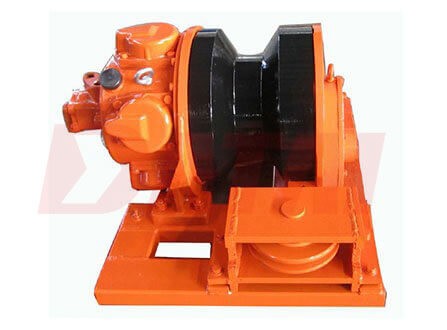

According to the structure form of the base, the pneumatic winch can be divided into common high base, common low base, flange base, trapezoidal buckle base, straight wire buckle base, ear plate base etc.
| The Parameters of Classic Air Winch | ||||
| No. | Model | JQH-5x48 | JQH-10x24 | |
| 1 | Rated Inlet Pressure (Mpa) | 0.8 | 0.8 | |
| 2 | Line Pull Capacity First Layer (Kn） | 5 | 10 | |
| 3 | Line Speed at Top Layer (m/min) | 48 | 24 | |
| 4 | Pneumatic Motor | Rated Power (Kw) | 2.6 | 2.6 |
| 5 | Number of Cylinder | 6 | 6 | |
| 6 | Dia of Cylinder (mm) | 65 | 65 | |
| 7 | Cylinder Stroke (mm) | 50 | 50 | |
| 8 | Rated Air Consumption (m³/min) | 5 | 5 | |
| 9 | Drum | Dia of Drum (mm) | 180 | 200 |
| 10 | Width of Drum (mm) | 200 | 200 | |
| 11 | Dia. of Drum Rim (mm) | 290 | 380 | |
| 12 | Line Capacity (m) | 60 | 60 | |
| 13 | Dia. of Wire Rope (mm) | 8 | 11 | |
| 14 | Net Weight (kg) | 146 | 176 | |
| Note: Other Non-standard Design , Pls Feel Free to Contact Us . | ||||
This air winch is widely used for drilling platform , marines , minings , engineering sites etc to pull heavy cargo .
We respond immediately to any questions , inquiries and needs , feel free to contact us at any time .
