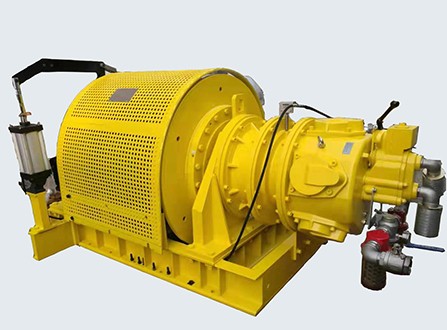

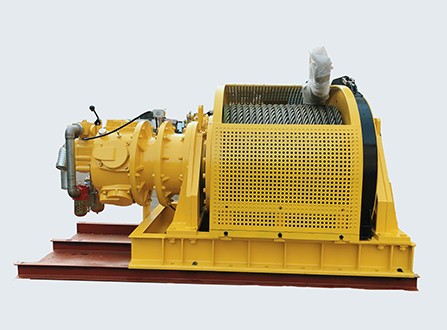

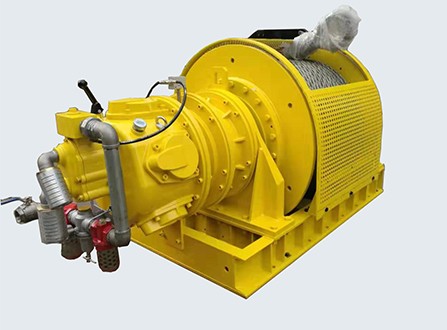

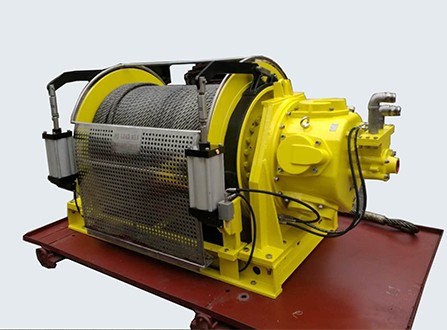

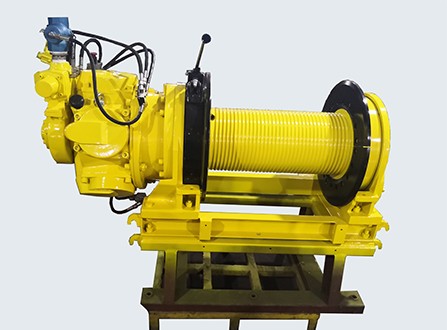

JQHS series pneumatic winch is powered by pneumatic motor and driven by a gear reducer to pull the heavy weight or lift it . It has the advantages of compact structure, convenient operation, safe and reliable work, simple maintenance, smooth operation and stepless variable speed .As explosion-proof traction, lifting equipment, especially suitable for oil fields, geological drilling, mining and explosive, flammable gas places .At present, this kind of product has been used in 1000 meters underground air return lane, lane drivage and other working face.
According to the structure form of the base, the pneumatic winch can be divided into common high base, common low base, flange base, trapezoidal buckle base, straight wire buckle base, ear plate base etc.
According to the brake system type can be divided into single brake (hand brake), double brake (hand brake + foot brake or hand brake + break brake), three brake (hand brake + foot brake + break brake), users can choose according to different habits and use occasions.
| The Parameters of 25 Ton Air Winch | |||
| No. | Model | JQHS-250x5 | |
| 1 | Line Pull Capacity First Layer (Kn） | 250 | |
| 2 | Line Speed at First Layer (m/min) | 5 | |
| 3 | Rated Power (Kw) | 30 | |
| 4 | Rated Working Pressure (Mpa) | 0.5-0.9 | |
| 5 | Maximum Air Consumption (L/S) | 400 | |
| 6 | Diameter of Wire Rope (mm) | 42 | |
| 7 | Drum Diameter (mm) | φ756 | |
| 8 | Rope Capacity (m) | 100 | |
| 9 | Dimensions of Winch(mm | 2650*1450*1350 | |
| 10 | Net Weight (kg) | 3500 | |
| Note: Other Non-standard Design , Pls Feel Free to Contact Us . | |||
The air winch is widely used for drilling platform , marines , minings , engineering sites etc to pull heavy cargo .
