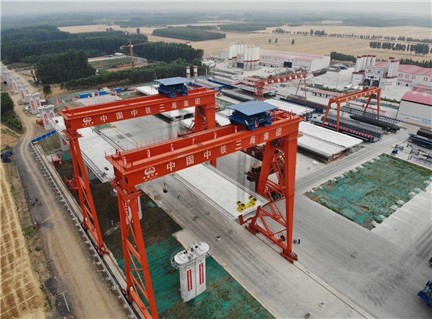

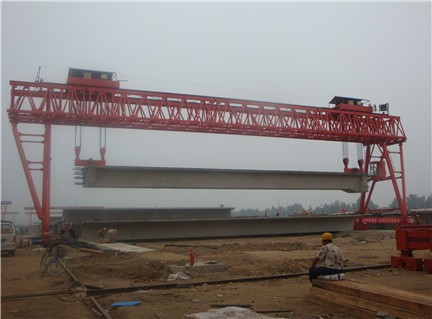

Beam Carrier gantry crane can be either two with lifting prefabricated beams, or a single crane with two spindles lifting prefabricated beams. The lifting weight of two simultaneous girders is usually 450 tons, and the lifting weight of a single girder is usually up to 900 tons.It is equipped with supporting leg walking, crane walking and crane lifting equipment, can achieve a full range of mechanical movement. It is mainly used to lift the precast beam from the beam making platform to the beam storage platform, and transfer the precast beam from the beam storage platform to the beam carrier after curing .As lifting equipment to complete the assembly and disassembly of bridge - erecting machine. It is also used to erect a dry bridge with low pier body.
|
Product Model |
Beam carrier gantry crane |
|
Lifting Capacity |
10-450 ton |
|
Span |
18m-35m |
|
Lifting height |
6m-30m |
|
Working grade |
A3,A4 |
|
Control method |
Ground control, Cabin control |
Note: If non-standard , pls email us .It can be customized .

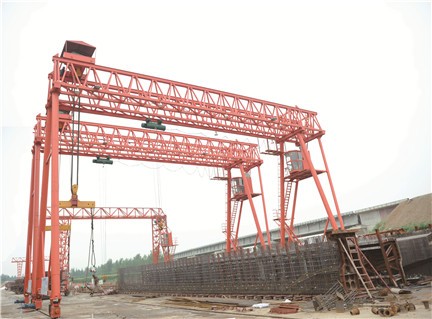

Beam carrier gantry crane specially designed for bridge construction , slab site construction . The girder lifting machine is mainly composed of assembled main girder, supporting leg, roof carriage, etc. The components are connected by pin shaft and high-strength bolt, which is easy to disassemble and transport.Compared with the ordinary gantry crane, it is convenient and fast to install, economical and practical.It is suitable for road and bridge construction units that often flow .
