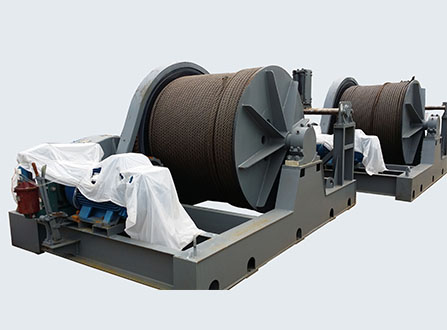

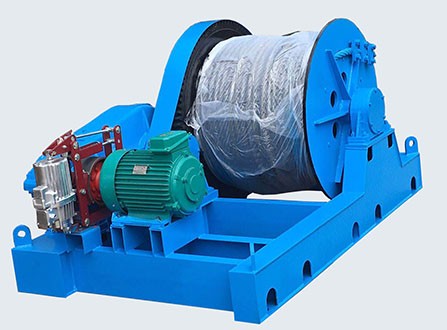

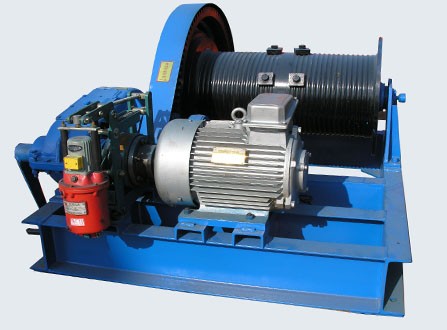

Slow Speed Electric Control Winch

This series winches are mainly used for lifting , pull , unloading and pull the weights , concrete segment and equipments. Such as all kinds of large and middle concrete segment , construction of steel , installation and disassembly of mechanical equipment . It is suitable for the construction and installation of the engineering project construction , installation enterprise , mining area , factory and also can be used for anchoring , towing and mooring on boat or at habor.

Get Price Send Email

Main Features

Parameters

Application

Related Cases

Main Features

1. The copper core motor has good electrical and thermal conductivity, strong power, low heat output, and durability.
2. The thickened wire rope drum is made of thickening treated alloy steel seamless steel tube, which has strong bearing capacity and is not easy to deform.
3. Precision casting gearbox, cast steel material, high transmission rate, large load capacity, and strong resistance to impact load.
4. Thickened channel steel base, strong stability.
5. Electro-hydraulic braking, stronger braking force.
6. Schneider Electronic.
7. Single speed or speed frequency conversion.
8. Operation mode is optional: control box, pendant control or remote control .

Parameter

Slow speed electric winch
No.	Rated load （KN)	Rated speed （m/min)	Rope capacity (m)	Rope diameters (mm)	electric motor model	Power of motor	Dimension(mm)	Weight (kg)
1	10	15	100	φ9.3	Y112M-6	3	620701417	270
2	16	16	150	φ12.5	Y132M-6	5.5	945996570	500
3	20	16	150	φ13	Y160M-6	7.5	945996570	550
4	32	9.5	150	φ15.5	YZR160M-6	7.5	14301160910	1100
5	32	12	195	φ15.5	YZR160M-6	7.5	10821014610	536
6	50	10	270	φ21.5	YZR160L-6	11	12351230945	1560
7	50	9.5	200	φ21.5	YZR160L-6	11	16201260945	1800
8	50	9.5	250	φ21.5	YZR160L-6	11	12351230805	1800
9	50	15	250	φ21.5	YZR180L-6	15	12351230805	1850
10	50	20	250	φ21.5	YZR200L-6	22	12351230805	2000
11	60	9.5	270	φ24	YZR180L-6	15	12351509805	1800
12	80	8	250	φ26	YZR180L-6	15	20901475956	2900
13	80	9.5	350	φ26	YZR180L-6	15	10751598985	2650
14	100	8	170	φ30	YZR200L-6	22	20901475956	3000
	100	9.5	250	φ30	YZR200L-6	22	17051598985	3500
15	125	8	300	φ34	YZR225M-6	30	288022001550	5000
16	135	5	290	φ28	YZP225S-6	22	299023631650	6500
17	160	10	500	φ37	YZP225S-8	37	375024001850	8800
18	200	10	600	φ43	YZR250M-8	45	395025601950	9900
19	250	9	700	φ48	YZR280M-8	55	435028002030	13500
20	320	9	700	φ56	YZR315S-8	75	450028502100	14800
21	600	9	800	φ65	YZR315M-8	90	493030502250	19500
22	650	10.5	3600	φ64	LA8315-8AB	100	590046803200	46000

Applications

The winches of this series are mainly used for lifting materials and pulling weights during the construction area. It can also be used as a main hoist. It is a special winch that can be installed on gantry cranes as a lifting trolley. It is widely used for the construction site and the installation of small construction equipment, mine area, workshop, etc.
