Main Features

• 1.Working class can reach M6 .
• 2. The lifting mechanism is equipped with a support brake and a safety brake. When the cone motor brake fails or the intermediate transmission link fails, the DC electromagnetic brake installed on the high speed shaft of the reducer or the ratchet brake installed on the reel starts to act to brake the heavy object and avoid the danger of the heavy object stalling.
• 3. With upper limit double limit function.
• 4. Weight limit protection function .
• 5. High temperature heat insulation protection function.
• 6. The insulation class of the lifting motor and the running motor is class H, and the overheat protection device is installed in the winding of the lifting motor.
• 7. The steel wire rope is equipped with high-strength high-temperature steel wire rope for metallurgical occasions.
• 8. Control mode preferred remote control.

Parameters

Applications

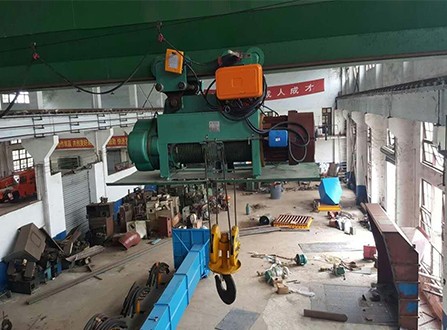

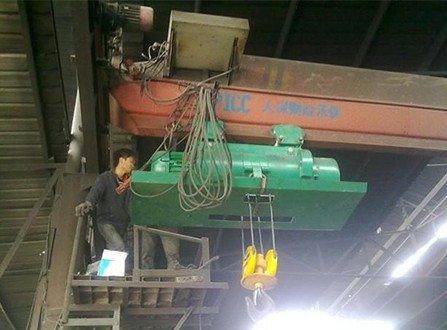

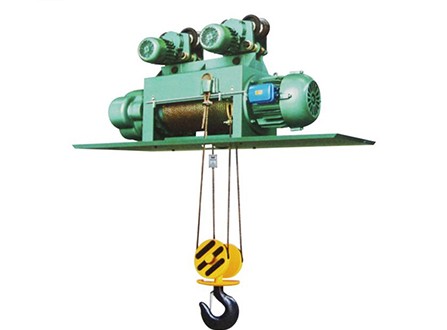

Metallurgical electric hoist is specially used for lifting molten metal or other high temperature solid objects of metallurgical steel wire rope electric hoist. It can not only be used as the lifting mechanism of single beam crane, double beam crane etc, but also can be installed on the fixed overhead track for independent use. It is a safe and reliable light and small special lifting equipment for medium and small metallurgical workplaces.
