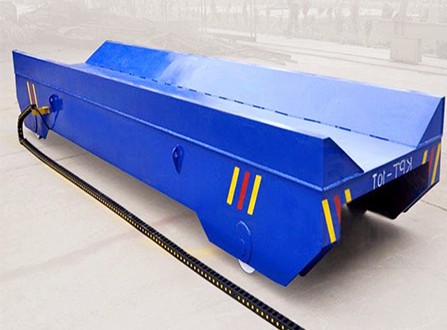

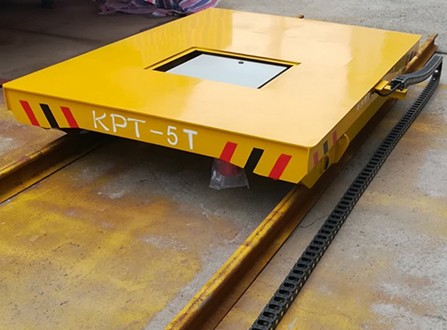

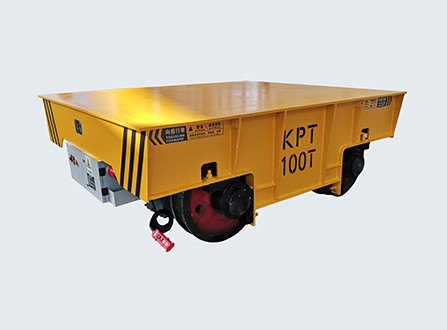

KPT series rail transfer cart is powered by drag chain cable , the AC cable is directly introduced into the transfer cart electrical control system of transfer cart to start ,stop, go forward and backward etc .The transfer cart is powered by the dragging cable which is laid on the ground. The cable line is laid between the two rails . The control voltage is 36v , the hydraulic lifting device can be installed on the transfer cart .
This type rail transfer cart are suitable to be used in the bad environment , for example , high-temperature and anti-explosion condition .With its simple structure and low cost , this series is more often used to transfer materials for a short distance(≤20 meters) from one workshop to another , high using frequency and low cart’s height . For the condition of short running distance and slow speed , the chain can be used to reduce the abrasion of the cable .
1.Simple structure , convenient to be used , high mechanic strength and loading capacity
2.Good stability , no permanent distortion .
3.Capacity is up to 500 ton .
4.Continuous working , there’s no time limitation .
5.Three-in-one drive DC motor , easy to maintenance.
6.Soft start ,Schneider frequency inverter.
7.Warning alarm , anticollision radar , travelling limiter, multiple protection .
8.Multiple operation method: hand pendant cable , radio remote control , roker wireless remote controller .
9.Functional customization: Frequency conversion startup, Explosion-proof occasion, Hydraulic Lifting function,
Rollover function, Mesa precision, Fixed-point stop, Scanning radar, positioning accuracy, anti rollover, Load-bearing
function, Climbing, Track turning, waterproof treatment, traverse unit, Aisle fork etc .
| KPT Rail Transfer Cart Powered by Draging Chain Cable | ||||||||||||||
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
|
Table Size (mm) |
Length | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
| Height | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | 800 | 900 | 1000 | 1200 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | Ø600 | Ø600 | Ø600 | Ø600 | |
| Wheel Quantity(pc) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
| Running Speed(m/min) | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | 0-20/25 | |
| Motor Power(kw) | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
| Max. Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.5 | 26.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU80 | QU100 | |
| Note: 1.Load capaicty , table size and rail inner gauge can be customized . | ||||||||||||||
| 2.Optional device : Cable reel (spring type , magnetic couping type , motor-driven type ) | ||||||||||||||
| 3.Automatic stop when detecting obstacle or person, travelling limit switch . | ||||||||||||||
| 4.Operation method: a .hand held control pendant b.remote radio control c. operation platform with the trolley . | ||||||||||||||
| 5. Can be designed in harsh environment , such as the high temperature etc . | ||||||||||||||
KPT Rail Transfer Cart Powered by Drag Chain Cable is widely used in foundry factory , warehouse , steel plant , aluminum factory , plastic pipes factory , metallurgy , shipyard , coal , mining ,mold industry , processing industries etc .
