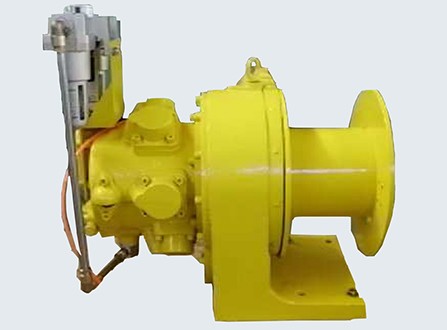

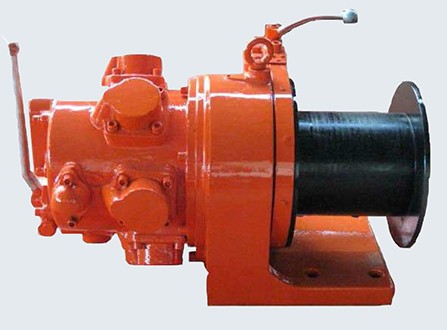

JQH series pneumatic hoist is a kind of powered by the piston starter, with one support in the form of small pneumatic winch drum, main lifting force for 5 kn and 10 kn two sizes, it has a safe explosion-proof, small volume, light weight, easy to carry and quick installation, etc, local normal operation can realize the stepless speed, especially suitable for oil field, mine geology, mining and the explosive, flammable gas environment and other places of auxiliary operations.

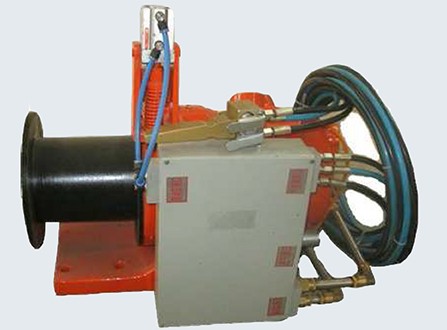

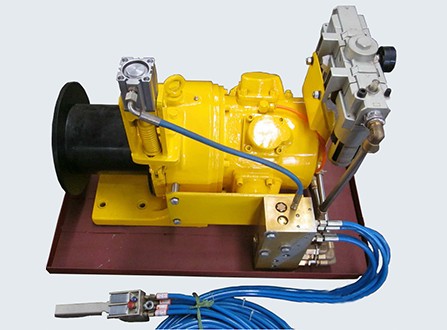

The series air winch in addition to the local operation, for the convenience of users, and design a remote pneumatic brake type, remote electric brake type and remote brake control etc various control and operation model. Make the brake system and lifting system combined into one , two sets of control system not only has realized the remote control, and has air brake function, simple operation, safe and reliable.
In addition, the remote control line has 6m, 8m, 10m and other different specifications, which should be specially specified when ordering .JQH series pneumatic winch is also equipped with pressure rope, hook, shackle, pendant chain, air treatment triplet and other optional configurations, users can choose according to their own needs and the selected winch.
| The Parameters of Stabbing Board Winch | ||||
| No. | Model | JQH-5x48 | JQH-10x24 | |
| 1 | Rated Inlet Pressure (Mpa) | 0.8 | 0.8 | |
| 2 | Line Pull Capacity First Layer (Kn） | 5 | 10 | |
| 3 | Line Speed at Top Layer (m/min) | 48 | 24 | |
| 4 | Pneumatic Motor | Rated Power (Kw) | 2.6 | 2.6 |
| 5 | Number of Cylinder | 6 | 6 | |
| 6 | Dia of Cylinder (mm) | 65 | 65 | |
| 7 | Cylinder Stroke (mm) | 50 | 50 | |
| 8 | Rated Air Consumption (m³/min) | 5 | 5 | |
| 9 | Drum | Dia of Drum (mm) | 180 | 200 |
| 10 | Width of Drum (mm) | 200 | 200 | |
| 11 | Dia. of Drum Rim (mm) | 290 | 380 | |
| 12 | Line Capacity (m) | 60 | 60 | |
| 13 | Dia. of Wire Rope (mm) | 8 | 11 | |
| 14 | Net Weight (kg) | 146 | 176 | |
| Note: The control method can be close control valve or remote pendant control with hose , Other Non-standard Design , Pls Feel Free to Contact Us. | ||||
This air winch is widely used for drilling platform , marines , minings , engineering sites etc to pull heavy cargo .
