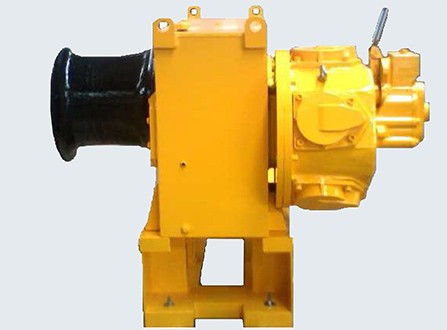

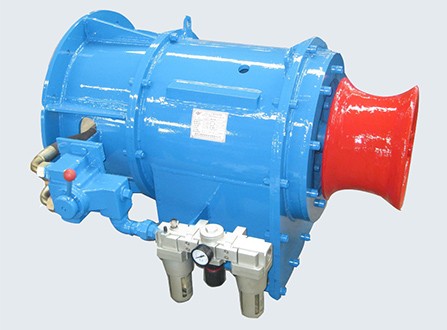

The self-braking capstan can be powered by electric , hydraulic or pneumatic motor , it can be installed in on-deck or below-deck, according to the direction of warping head , it can be horizontal or vertical capstan . Air capstan is a new type of pneumatic mechanical products. It is powered by a pneumatic motor and passes the power to the drum through a gear reducer. It is suitable to be used in explosion-proof environment and multiple industrial purposes .
Control Option
Certificate Option
| The Parameters of Air Capstan | ||||||
| No. | Model | QJP-0.5 | QJP-03 | QJP-5 | QJP-10 | |
| 1 | Line Pull Capacity First Layer (Kn） | 5 | 25 | 50 | 100 | |
| 2 | Drum Speed (r/min) | 0-25 | 0-12 | 0-14 | 15 | |
| 3 | Rated Power (Kw) | 3.9 | 5 | 9 | 30 | |
| 4 | Rated Working Pressure (MPa) | 0.8 | 0.8 | 0.8 | 0.8 | |
| 5 | Rated Air Consumption (m³/min) | 3 | 4.5 | 8.5 | 25.6 | |
| 6 | Net Weight (kg) | 350 | 400 | 620 | 2500 | |
| Note: Other Non-standard Design , Pls Feel Free to Contact Us . | ||||||
