Main Features

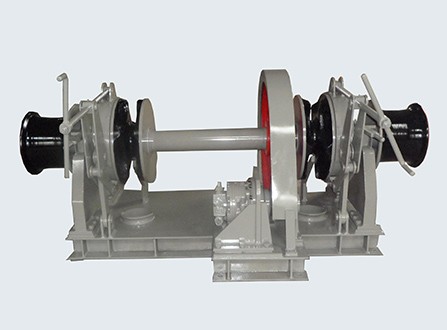

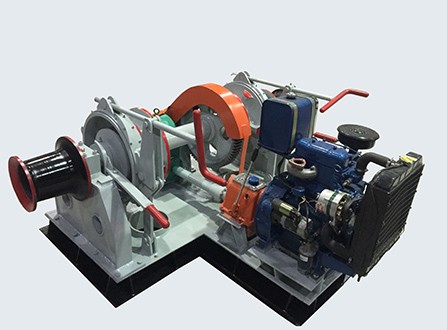

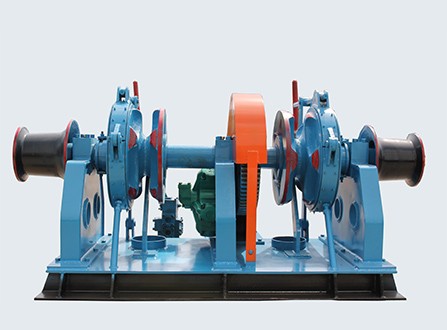

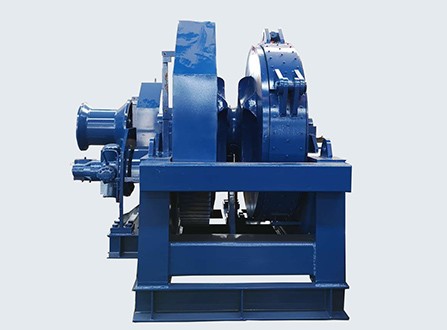

Datai anchor windlasses come in different sized and configuration , It also can be customized . Mainly being used to the offshore sector . They can be installed in vessels , drilling platform etc.
The drive power can be electric or hydraulic , it can be double gypsy wheels or single gypsy wheel according to the customers’ requirements . The diameter of anchor can be 19mm to 132mm . It also has strong adaptability for the marine environment.
Anchor windlasses come with the drum , clutch and brake , the clutch and brake can be drived by manual , hydraulic or pneumatic.

Parameter

Hydraulic Anchor Windlass
No.	Specifications of Electric Windlass	Chain Dia （mm)	Working Load (Kn)	Lifting Anchor Speed (m/min)	Pulling Force (Kn)	Towing Speed (m/min)	Motor Power (Kw)
1	ø19/20.5/22	19/20.5/22	15.3/17.9/20.6	≥9	15	≥12	7.5
2	ø24/26	24/26	24.5/28.7	≥9	20	≥12	11
3	ø28/30	28/30	33.3/38.3	≥9	25	≥12	15
4	ø32/34/36	32/34/36	43.5/49.1/55.1	≥9	30	≥12	22
5	ø38/40/42	38/40/42	61.4/68/75	≥9	50	≥12	30
6	ø44/46/48	44/46/48	82.3/89.9/97.9	≥9	60	≥12	37
7	ø50/52/54	50/52/54	106.3/114.9/123.9	≥9	60	≥15	37
8	ø56/58/60	56/58/60	133.3/143/153	≥9	80	≥15	40
9	ø62/64	62/64	163.4/174.1	≥9	100	≥15	47
10	ø66/68	66/68	185.1/196.5	≥9	120	≥15	55
11	ø70/73	70/73	208.3/226.5	≥9	147	≥15	60
12	ø76/78	76/78	245.5/258.6	≥9	147	≥15	70
13	ø81/84	81/84	311.7/335.2	≥9	160	≥15	90
14	ø87/90	87/90	359.5/384.8	≥9	200	≥15	102
15	ø92/95	92/95	402.2/428.7	≥9	200	≥15	115
16	ø97/102	97/102	446.9/494.2	≥9	250	≥15	130
17	ø105/107	105/107	523.7/543.8	≥9	250	≥15	145
18	ø111/114	111/114	585.2/617.3	≥9	250	≥15	160
19	ø117/122	117/122	650.2/707	≥9	250	≥15	187
20	ø132	132	827.64	≥9	300	≥15	250
Note : Other Non-standard Design , Pls Contact Us Freely .

Applications

Cargo Ship , Tankers etc.

Offshore

Platform

Dockside

Various types of vessels
