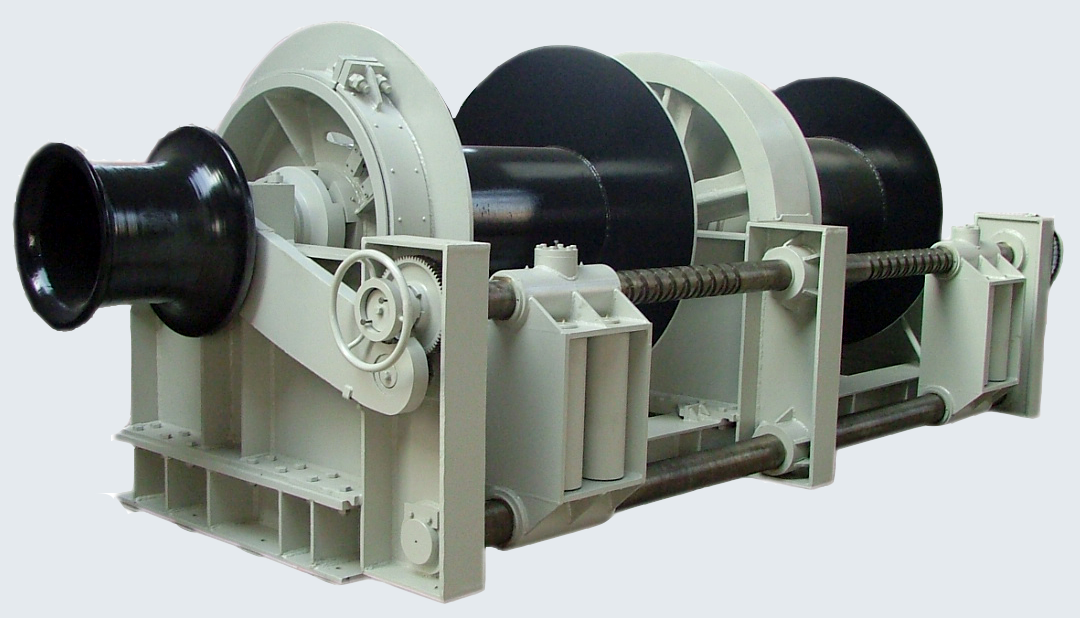

Anchor handling and Towing Winch is mainly for anchoring and towing purpose . It is widely used in tug boat . The power source can be electric or hydraulic , the brake and clutch can be manual, hydraulic or pneumatic .The structure can be single drum or waterfall type , waterfall type is widely used on the tug boat , the lower drum is for positioning , the upper drum is for the towing . The speed is determined by the capacity , if capacity is big , the speed is slower . In general , the speed is usually from 3m/min to 10m/min , the rope capacity is from 500 meters to 1500 meters . It often comes with the spooling device . If the capacity is big , the hydraulic is prefer . The control method can be close control or remote control in wheelhouse . It has the emergency release function . Constant tension system , Tension display function or rope length display function can be as an option . The design standard can be CCS,BV,ABS,GL,RS,IRS etc .
Customized towing winch .
The towing winch can be single drum , double drum or triple drum , the power can be electric-hydraulic , diesel hydraulic , we can design it as the working requirements . The towing winch is mainly used for towing and anchor handing of tugs , AHTS , or salvage ships etc .
| Anchor Handling and Towing Winch | ||||||
| No. | The Drum for the Anchor |
Motor Power (Kw) |
Weight (Ton) | |||
|
Drum Load (Kn) |
Speed (m/min) |
Rope Size (mm*m) |
Supporting Load (Kn) |
|||
| 1 | 100 | 7.5 | 24*450 | 280 | 30 | 18.9 |
| 2 | 160 | 7.5 | 28*500 | 457 | 45 | 22.2 |
| 3 | 200 | 7.5 | 30*500 | 525 | 55 | 23.5 |
| 4 | 250 | 7.5 | 32*300 | 598 | 75 | 27.6 |
| 5 | 320 | 5 | 36*600 | 756 | 90 | 30.1 |
| 6 | 400 | 5 | 40*750 | 934 | 75 | 35.5 |
| 7 | 500 | 5 | 52*150 | 1460 | 90 | 49.2 |
| 8 | 630 | 5 | 54*850 | 1700 | 110 | 42.5 |
| 9 | 800 | 5 | 58*1000 | 1960 | 132 | 44.3 |
| 10 | 1000 | 5 | 64*1000 | 2310 | 180 | 46.7 |
| 11 | 1250 | 5 | 70*1200 | 2860 | 220 | 51.9 |
| 12 | 1400 | 4 | 77*1200 | 3200 | 220 | 56.4 |
| 13 | 1600 | 4 | 82*1500 | 3786 | 220 | 63.5 |
| 14 | 2000 | 4 | 90*1500 | 4560 | 280 | 70.5 |
| 15 | 2500 | 4 | 102*1500 | 5860 | 355 | 78.5 |
| 16 | 3000 | 4 | 110*1500 | 6810 | 400 | 82.6 |
| Note : Other Non-standard Design , Pls Contact Us Freely . | ||||||
Tug boats
Offshore Platform
Dockside
