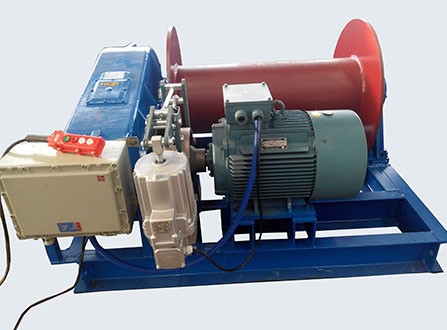

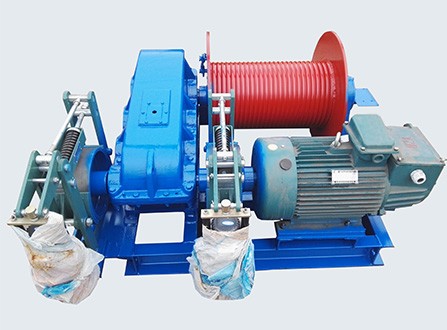

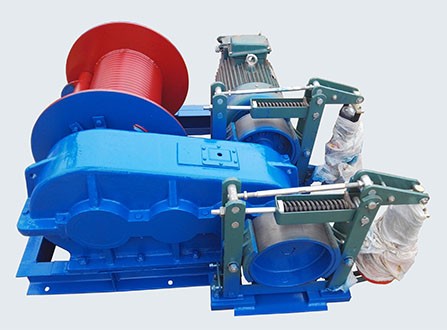

Fast Speed Electric Control Winch

The winch is a small, light weight equipment that uses a drum to wind a steel cable or chain to lift or tow heavy objects. You can lift heavy objects vertically, horizontally, or obliquely. It can be used alone or as a component of machinery such as lifting, road construction, mine hoisting, etc. It is widely used due to its simple operation, large cable winding volume, and convenient shifting.

Get Price Send Email

Main Features

Parameters

Application

Related Cases

Main Features

1. The copper core motor has good electrical and thermal conductivity, strong power, low heat output, and durability.
2. The thickened wire rope drum is made of thickening treated alloy steel seamless steel tube, which has strong bearing capacity and is not easy to deform.
3. Precision casting gearbox, cast steel material, high transmission rate, large load capacity, and strong resistance to impact load.
4. Thickened channel steel base, strong stability.
5. Electro-hydraulic braking, stronger braking force.
6. Schneider Electronic.
7. Single speed or speed frequency conversion.
8. Operation mode is optional: control box, pendant control or remote control .

Parameter

Fast Speed Electric Winch
No.	Rated load （KN)	Rated speed （m/min)	Rope capacity (m)	Rope diameters (mm)	Electric motor model	Power of motor (KW)	Dimension(mm)	Weight (kg)
1	5	22	190	φ7.7	Y100L-4	3	620701417	200
2	10	22	100	φ9.3	Y112M-4	4	620701417	300
3	16	24	150	φ12.5	Y132S-4	5.5	945996570	500
4	20	24	150	φ13	Y132S-4	7.5	945996570	550
5	32	25	290	φ15.5	YZR180L-6	15	13251335840	1011
6	32	30	250	φ15.5	YZR200L-6	22	19001738985	1500
7	50	30	300	φ21.5	YZR225M-6	30	19001620985	2050
8	50	25	210	φ21.5	YZR225M-8	22	225025001300	2264
9	80	25	160	φ26	YZR280S-8	45	153319851045	3000
10	100	30	300	φ30	YZR315S-8	55	225025001300	5100
Note : Other Non-standard Design , Pls Contact Us Freely.

Applications

The winches of this series are mainly used for lifting materials and pulling weights during the construction area. It can also be used as a main hoist. It is a special winch that can be installed on gantry cranes as a lifting trolley. It is widely used for the construction site and the installation of small construction equipment, mine area, workshop, etc.
