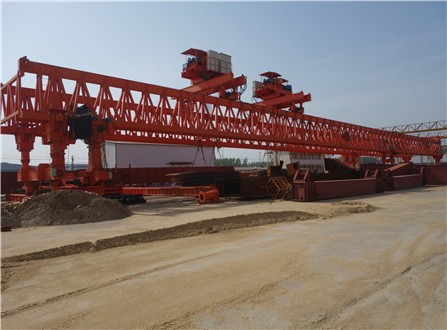

The new generation of bridge erecting machine developed on the basis of highway bridge erecting machine and railway bridge erecting machine is suitable for erecting T type beam of passenger and freight common line with a speed of 200 km per hour or below in new railway and old railway line reconstruction. The maximum span is 32 meters and the maximum rated load is 180t.After adding some components, highway prestressed reinforced concrete beams can be erected with a maximum span of 40 meters and a maximum rated load of 360t.This machine is of single arm simply supported type, which can erect straight bridge, inclined bridge and curved bridge.
| Beam Launching Gantry Crane | |||||
| 1 | Working Grade | A4 | A4 | A4 | A4 |
| 2 | Lifting Capacity | 100 ton | 160 ton | 220 ton | 360 ton |
| 3 | Span | 30m | 31m | 35m | 32m |
| 4 | Lifting Speed | 0.9m/min | 0.8m/min | 0.7m/min | 0.7m/min |
| 5 | Longitudinal Speed | 0-4m/min | 5m/min | 4.9m/min | 5m/min |
| 6 | Transversal Speed | 0-3m/min | 0-3m/min | 0-2.8m/min | 0-3m/min |
| 7 | Machine Speed | 0-3m/min | 0-3m/min | 0-3m/min | 0-3m/min |
| 8 | Longitudinal Slope | 4% | 3% | 3% | 2% |
| 9 | Min. Curve Radius | 300-400m | 350-400m | 600-800m | 400-600m |
| Note : For More Details , Pls Contact Us Freely . | |||||

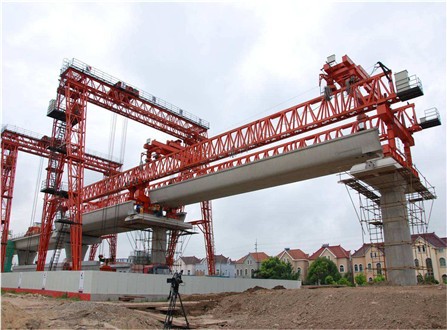

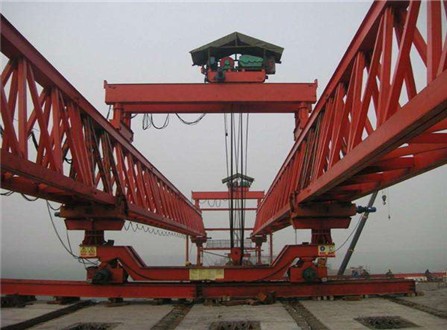

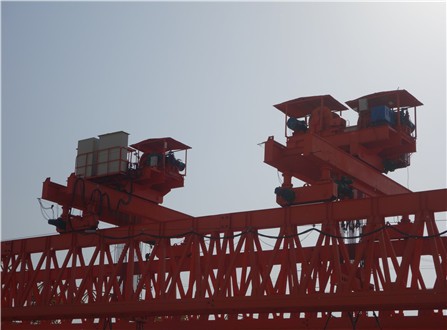

This launching gantries are especially suitable for beam construction of long-span Bridges across rivers, Hubo, railway, highway and city single road.
