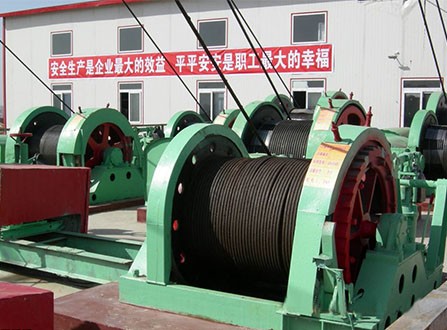

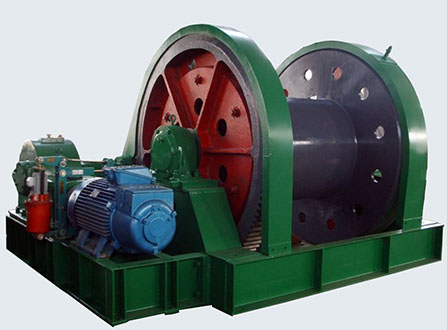

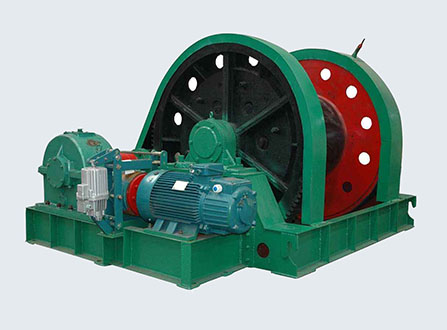

Electric shaft sinking winch is mainly used for hoisting tray, water pump, water pipe, grouting pipe, air duct and other driving equipment and tensioning rope during shaft driving in coal mine, metal mine and non-metal mine during the shaft construction period. The winch is mainly used to replace the tail rope connected between two cages of the hoist. And for the best flat rope, can also be used for a vertical shaft winch, and its performance is the same as the vertical shaft. JZ series sinking winch has the advantages of strong lifting capacity, large rope capacity and smooth operation.
| Electric Shaft Sinking Winch | |||||||||
| No. | Model | Max static tension of wire rope (KN) | Rope capacity(m) | The speed of wire rope(m/min) | Dia of wire rope(mm) | Motor power |
Dimension (L*W*H) (mm) |
Weight (kg) |
|
| Fast | Slow | ||||||||
| 1 | JZ-5/400 | 50 | 400 | 6 | 3 | 23 | 11 | 2375*1970*1340 | 3140 |
| 2 | JZ-10/600 | 100 | 600 | 6 | 3 | 31 | 22 | 3037*2570*1770 | 6250 |
| 3 | JZ-10/800 | 100 | 800 | 6 | 3 | 31 | 22 | 3342*2906*1825 | 6500 |
| 4 | JZ-16/800 | 160 | 800 | 6 | 3 | 40 | 30 | 3358*3200*2240 | 11480 |
| 5 | JZ-16/1000 | 160 | 1000 | 6 | 3 | 40 | 37 | 3508*3200*2240 | 11700 |
| 6 | 2JZ-5/400 | 2*50 | 2*400 | 6 | 3 | 23 | 22 | 3115*2579*1300 | 6000 |
| 7 | 2JZ-10/600 | 2*100 | 2*600 | 6 | 3 | 31 | 42 | 4436*2873*1770 | 11250 |
| 8 | 2JZ-10/800 | 2*100 | 2*800 | 6 | 3 | 31 | 42 | 4270*2923*1770 | 13560 |
| 9 | 2JZ-16/800 | 2*160 | 2*800 | 6 | 3 | 40 | 55 | 5473*3440*2240 | 20840 |
| 10 | 2JZ-16/1000 | 2*160 | 2*1000 | 6 | 3 | 40 | 55 | 5473*3690*2240 | 21072 |
| Note : JZ-Single drum shaft sinking winch , 2JZ-Double drum shaft sinking winch . Other Non-standard Design , Pls Contact Us Freely . | |||||||||
It is mainly used as the tension and stability rope of the excavating equipments, such as suspension tray water pump air pipe, compressed air pipe grouting pipe, etc., in the shaft driving engineering of coal mine , metal mine and non-metal mine, and can also be used for other heavy lifting underground and on the ground.
