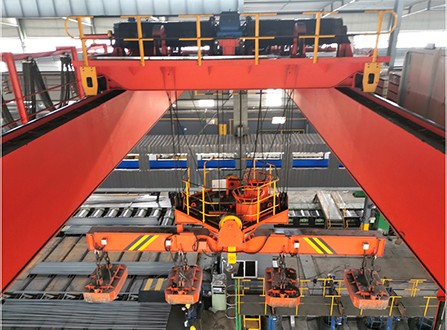

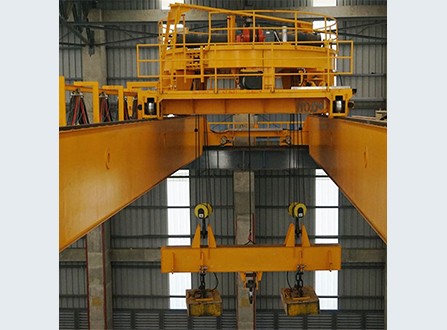

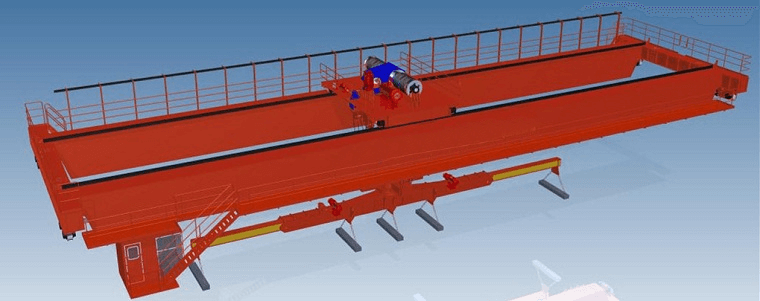

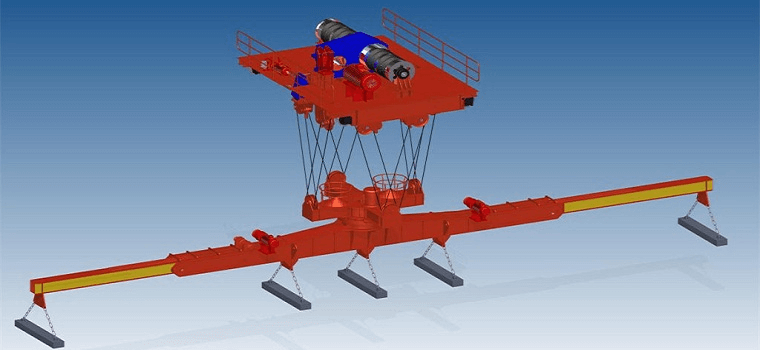

Electromagnetic Overhead Crane with Slewing Carrier Beam

The electromagnetic overhead crane with slewing carrier beam can be devided into electric beam rotation and trolley rotation . It is widely used for loading, unloading and carrying stee1 plate，profile steel and spool etc．It is especially applicable to lift material of different specifications of materials which needs horizontal rotation, according to the specifications and weight of hanging material , it can adjust the electromagnetic spacing and stepless adjustment of electromagnetic force .The carrier beam can carry magnetic chuck , tongs etc．

Get Price Send Email

Main Features

Parameters

Application

Related Cases

Main Features

1. The crane is equipped with detachable electromagnetic chuck , especially suitable for carrying magnetic black metal products and materials, such as steel ingot, section steel, pig iron block, etc.
2. Simple structure, uniformity force exertion, convenient disassembly.

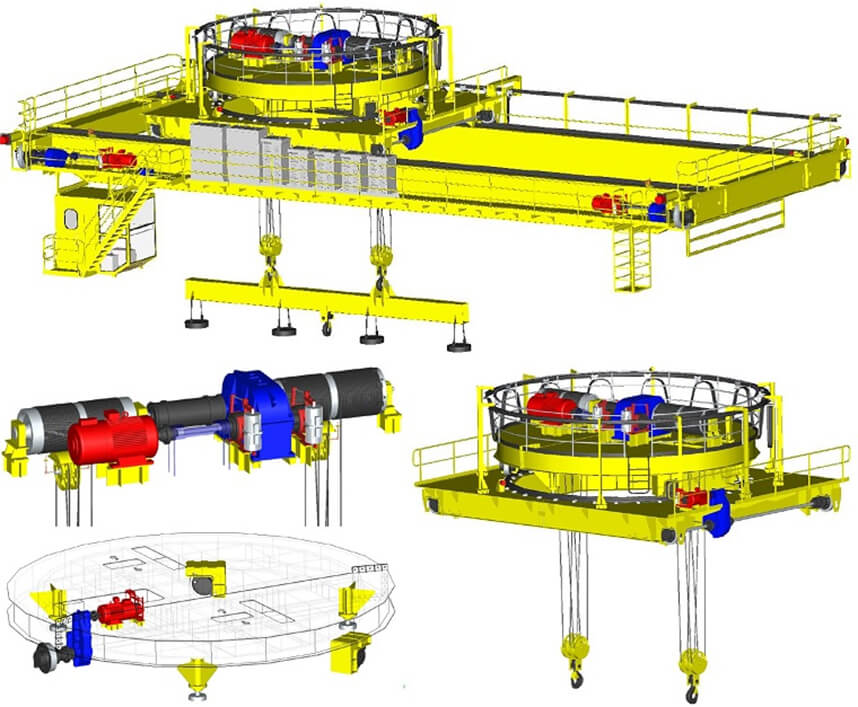

3. The metal structure of the carrier-beam adopts the box beam welded by steel plate, and the electromagnetic chuck on the carrier-beam can be disassembled, which is convenient for maintenance .
4. Overload limiter adopts double sensor and double channel input respectively, and sets control points respectively for single lifting point and two lifting mechanism, which makes the use of crane more convenient and safer.

Henan Datai Machinery Equipment Co., Ltd.

Parameters

Electromegnetic Overhead Crane with Slewing Carrier Beam
Lifting Capacity	ton	15-40
Lifting Height	m	5.5-16
Span	m	19.5-34.5
Working Duty		A6 or A7
Design Standard		GB/T , FEM
Control Method		Cabin control , Remote control
If have other requirements , pls advise before the production .

Applications

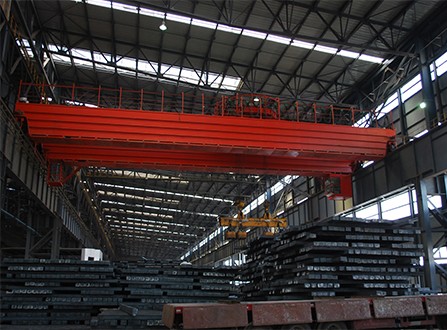

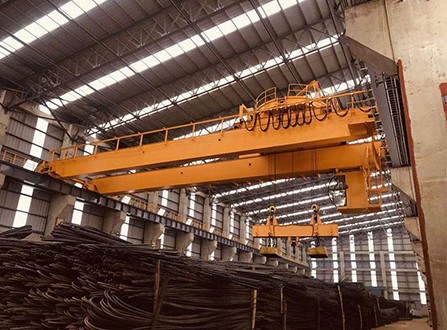

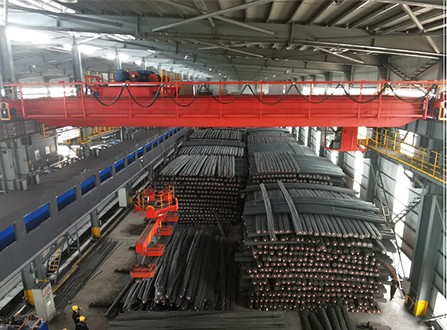

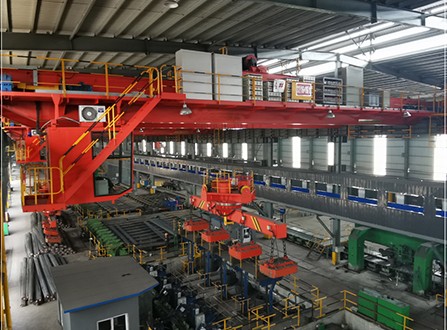

Electromagnetic overhead crane with slewing carrier beam is suitable for steel mills, shipyards, ports, storage yards and indoor or outdoor with fixed span, loading, unloading and handling of steel plate, section steel, coil and other materials.
