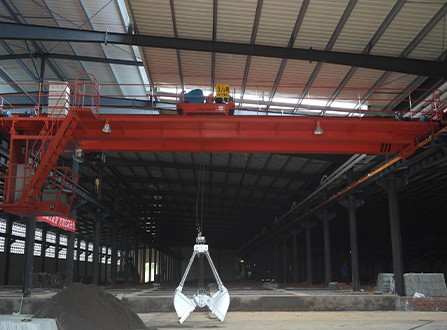

Grab Bucket Overhead Crane

The main technical parameters of the grab bucket overhead crane are as follows: lifting capacity: 5T, 10T, 16T, 20T and other four specifications; Span: 10.5 m, 13.5 m, 16.5 m, 19.5 m, 22.5 m, 25.5 m, 28.5 m, 31.5 m of eight kinds of specifications .



The crane equipped with two forms of grab, when opening/closing direction and crane operation in the same direction, this is type 1, when the direction of opening/closing and crane running direction is vertical, this is type 2 .The rated lifting capacity of the crane includes the dead weight of grab.



According to the grab characteristic table , The grab can be divided into three types, light, medium and heavy .When used in the open air with rainproof equipment, the total weight and wheel pressure of the crane will increase by about 5%. When ordering, the lifting capacity, span, lifting height, working class, opening and closing direction of grab should be clearly written.



Get Price Send Email
Main Features
Parameters
Application
Related Cases
Related Products
Get In Touch

Main Features

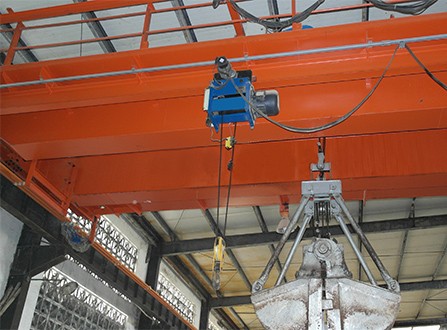

It can equipped with hydraulic clamshell grab , mechanical (rope) grab and elctro hydraulic(motorized) grab .

  • 1.The machine is mainly composed of box bridge travelling mechanism，trolley，grab and electrical system.
  • 2.Trolley, equipped with two winding drums，has two set of respective drive One is fo r conveying mate rials，the other is for opening and closing grab.
  • 3.Grab has four ropes According to different materials and working conditions，its classification group is divided into light medium and heavy its volume haslM3,1.5M3,2.5M3,3M3for choice. In general Grab is appropriate for granular mate rials through natural accumulation，the dimension of whch is less than 100mm .If underwater mate rials or other special materials are required to be conveyed, you need to point out it in the order.
  • 4.Travelling mechanism adopts respective drive Travelling mechanism and trolley may choose eithe r resistors or variable frequency for speed adjustment.
  • 5.The manipulationis cabin's control，either open or closed.

Parameters

Overhead Crane With Grab
 Lifting Cpacity ton 5 10 16 20
 Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 16.5 19.5 22.5 25.5 28.5 31.5 16.5 19.5 22.5 25.5 28.5 31.5
Lifting Height m 20 18 28 26
Working Duty 　 A6 A6 A6 A6
Speed  Hoisting m/min 39.2 39.3 41.8 45.7
Trolley Travelling 44.6 45.3 43.2 43.2
Crane Travellning 93.6 113.6 112.5 101 98 87.3 87.3
Max. Wheel Load kn 75 80 87 95 102 113 122 130 113 121 131 142 152 162 172 180 206 218 233 247 257 269 229 243 254 270 279 293
Crane Rail Recommended  　 43kg/m or QU70 43kg/m or QU70  QU70 or 90*90  QU70 or 90*90
Grab Working Duty Light Middle Heavy Superheavy Light Middle Heavy Superheavy Light Middle Heavy Superheavy Light Middle Heavy Superheavy
Volume m³ 2.5 1.5 1 0.75 5 3 2 1.5 8 4.8 3.2 2.5 10 6 4 3
Density of Material t/m³ ≤1 ＞1~1.7 ＞1~2.5 ＞2.5~3.3 ≤1 ＞1~1.7 ＞1.7~2.5 ＞2.5~3.3 ≤1 ＞1~1.7 ＞1.7~2.5 ＞2.5~3.3 ≤1 ＞1~1.7 ＞1.7~2.5 ＞2.5~3.3
Self Weight  kg 2633 2549 2615 2506 2568 2479 2546 4800 4803 4866 4850 4913 4730 4793 7840 7993 8143 8008 8159 8155 8305 9812 10098 10287 9976 10123 9780 10206



Applications

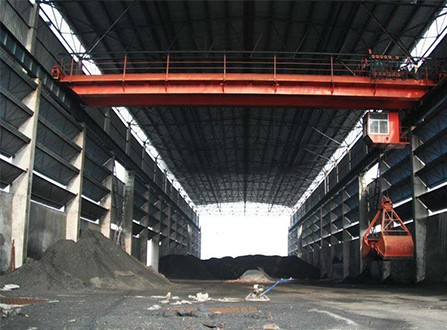

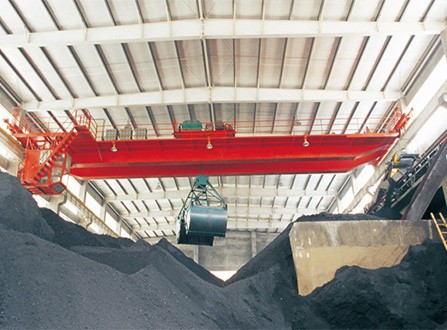

This grab bucket overhead crane is widely used in mine, metallurgy, chemical industry etc ,it can transport bulk materials such as ore, limestone, slag, powder, coke, coal and sand indoor or open-air on fixed span.
