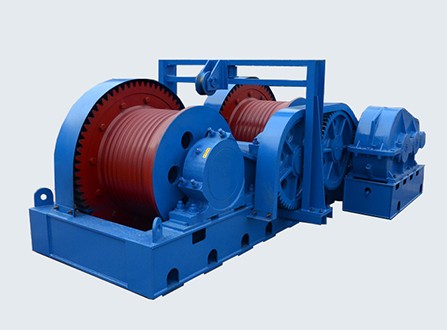

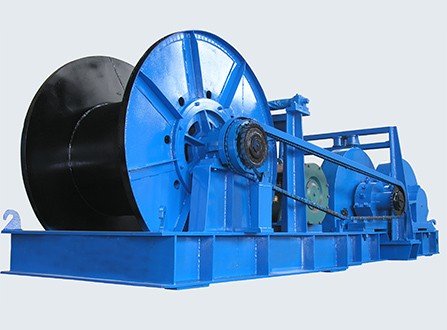

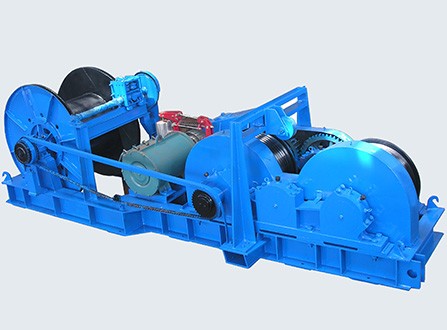

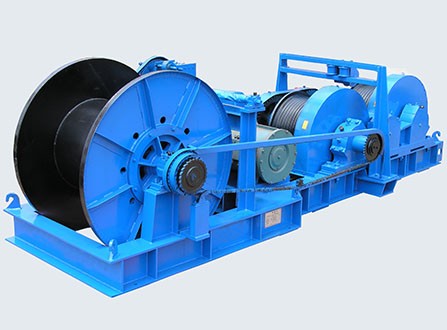

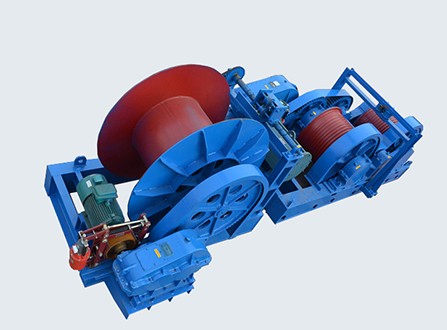

Friction winch is mainly used for long distance traction and long stroke lifting of various large concrete, steel structure and steel cable and. Friction winch is characterized by constant speed of wire rope and smooth lifting.Suitable for all kinds of Bridges, ports, docks and other road and bridge construction and installation of large factories, mines, power engineering equipment.
| Electric Friction Winch | ||||||||
| No. | Rated load （KN) | Rated speed （m/min) | Rope capacity (m) | Rope diameters (mm) | Electric motor model | Power of motor (KW) | Dimension (mm) | Weight (kg) |
| 1 | 5 | 22 | 190 | φ7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| 2 | 10 | 22 | 100 | φ9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| 3 | 16 | 24 | 150 | φ12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| 4 | 20 | 24 | 150 | φ13 | Y132S-4 | 7.5 | 945*996*570 | 550 |
| 5 | 32 | 25 | 290 | φ15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| 6 | 32 | 30 | 250 | φ15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| 7 | 50 | 30 | 300 | φ21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| 8 | 50 | 25 | 210 | φ21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| 9 | 80 | 25 | 160 | φ26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| 10 | 100 | 30 | 300 | φ30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
| Note : Other Non-standard Design , Pls Contact Us Freely . | ||||||||

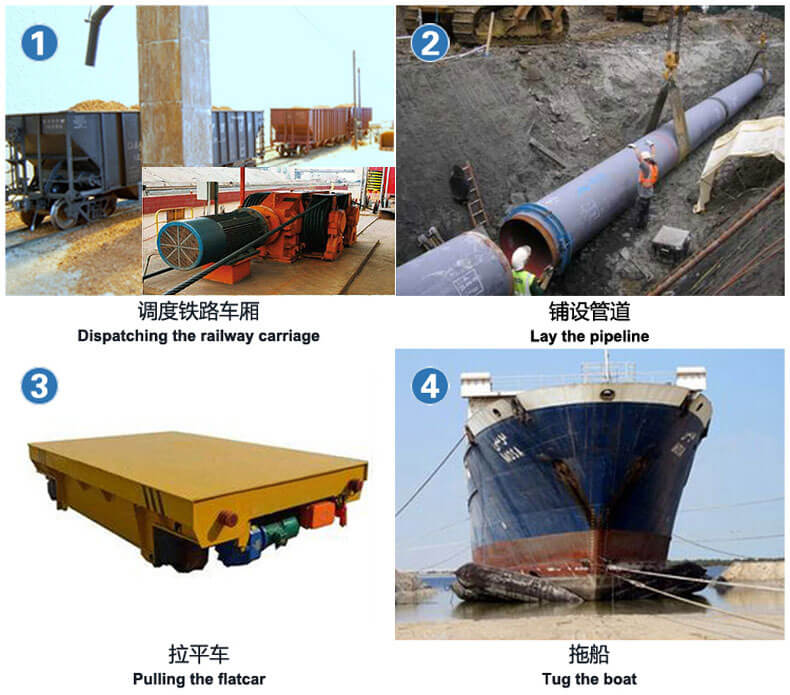

The friction winch can be powered by the electrical or hydraulic system. It is mainly used for long distance pulling and long stroke lifting of various large concrete, steel structure and steel wire rope. The friction winch is characterized by constant cable speed and smooth traction. Suitable for all kinds of bridges, ports, piers，other roads and bridge construction and installation of large factories, mines, energy engineering equipment. It is also very popular used for pulling the
vessel out of water for the shipyard .
l
We respond immediately to any questions , inquiries and needs , feel free to contact us at any time .
