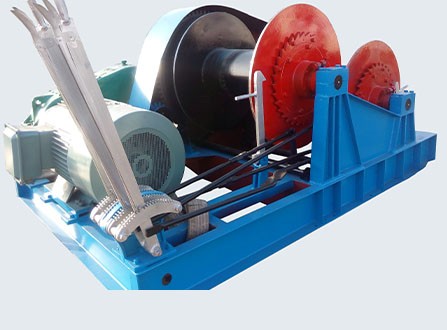

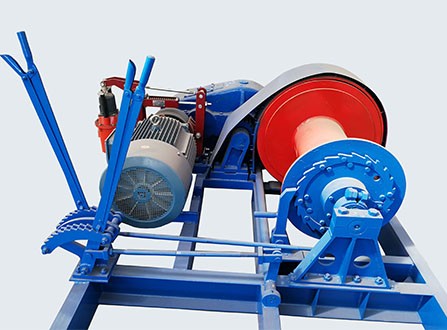

The winch converts electrical energy into mechanical energy through the motor, that is, the motor's rotor rotates and outputs, and then drives the reel to rotate after being decelerated by the triangle belt, shaft, and gear. The drum winds the steel wire rope and passes through the pulley block, so that the crane hook lifts or drops the load to complete the vertical transportation, loading and unloading of the load.
| Hand Control Fast Speed Free Fall Electric Winch | ||||||||
| No. | Rated load （KN) | Rated speed （m/min) | Rope capacity (m) | Rope diameters (mm) | electric motor model |
Power of motor KW |
Dimension(mm) | Weight (kg) |
| 1 | 20 | 30 | 150 | φ13 | Y180L-6 | 15 | 1370*1650*1210 | 1200 |
| 2 | 30 | 30 | 200 | φ15 | Y200L-6 | 22 | 1690*1740*1200 | 1800 |
| 3 | 50 | 30 | 250 | φ21 | Y225S-6 | 37 | 2300*2100*1650 | 3000 |
| 4 | 60 | 36 | 250 | φ24 | Y280S-6 | 45 | 2350*2100*1650 | 3200 |
| 5 | 80 | 29 | 250 | φ26 | Y280M-6 | 55 | 2440*2500*1800 | 5500 |
| 6 | 100 | 29 | 250 | φ28 | Y315S-6 | 75 | 2590*2540*1800 | 5800 |
| Note : Other Non-standard Design , Pls Contact Us Freely. | ||||||||

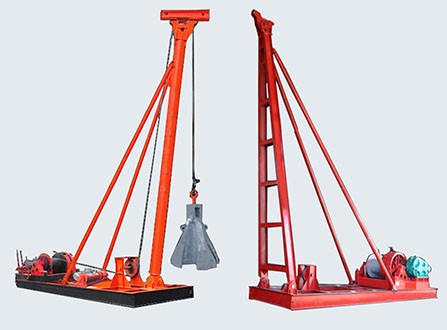

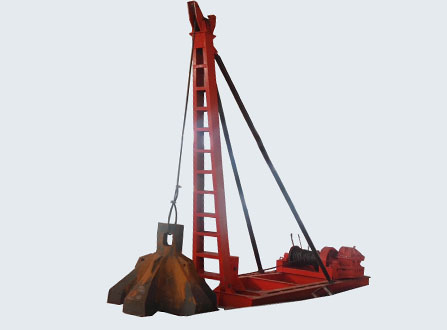

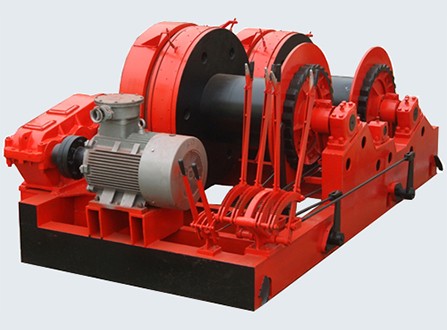

This series of winches is mainly used for vertical lifting of heavy objects in construction sites, factories and mines, ports and other projects, especially suitable for free-falling and piling operations of bridges, wharves, and building foundation projects. Its structure is characterized by double drum hoisting, which can meet the multi-functional requirements of lifting hammer, lowering cage, dredging and grouting.
We respond immediately to any questions , inquiries and needs , feel free to contact us at any time .
