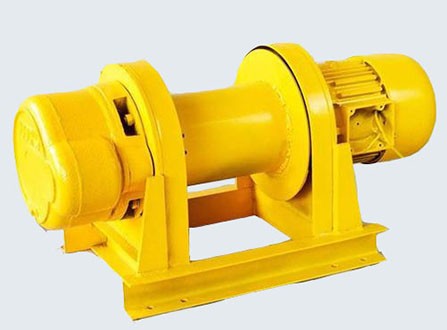

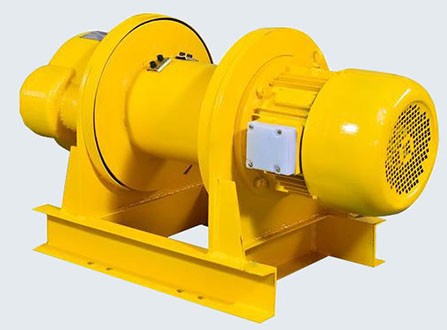

The mini electric winch is a device that drives the drum and winds the rope by mechanical energy to complete the pulling work. It can be lifted vertically, pulled horizontally or tilted. The electric winch is composed of a motor, a coupling, a brake, a gearbox and a spool, which are installed together on the frame. Wire rope, electrical control box, handle switch, hook and wireless remote control can be added as required.
| Mini Electric Winch | |||||||
| No. | Rated load （KN) | Rated speed （m/min) | Rope capacity (m) | Rope diameters (mm) |
Power of motor KW |
Dimension(mm) | Weight (kg) |
| 1 | 7.5 | 30 | 100 | φ9.3 | 3 | 900*340*400 | 165 |
| 2 | 12.5 | 46 | 120 | φ11 | 7.5 | 1140*400*450 | 315 |
| 3 | 16 | 28 | 160 | φ12.5 | 7.5 | 1200*440*480 | 350 |
| 4 | 20 | 36 | 190 | φ13 | 13 | 1400*470*548 | 510 |
| Note: Other Non-standard Design , Pls Contact Us Freely. | |||||||
It is suitable for residential construction, cinder block lifting, well digging, cargo depots, shopping malls, restaurants, individual workshops, and small factories and mines. It can be moved, hoisted, loaded and unloaded at any angle. It is the ideal little lifting tool.
We respond immediately to any questions , inquiries and needs , feel free to contact us at any time .
