Ladle transfer cart is used to transport the specific high-temperature ladle , the ladle transfer cart has the advantages of high temperature resistance ,strong heavy load capacity , customization and simple operation . The power of transfer cart is supplied by the high-temperature resistance and explosion-proof motor .To prevent the splash of molten steel or steel slag , the traction motor of the ladle transfer cart is soft start and stop slowing to reduce inertia .In order to prevent the temperature radiation of the package , the body of ladle transfer cart is equipped with thermal insulation materials .To ensure the transportation of molten steel better , the double transmission system is adopted , once one system failed , the other system can complete a process cycle .
1.Explosion-proof and high-temperature resistance .
2.The working table laying firebrick .
3.High temperature resistant material is set in the body , to increase the heat insulation protection .
4.Equipped with high temperature resistance electrical , further increase heat insulation protection to extend the service life of equipment .

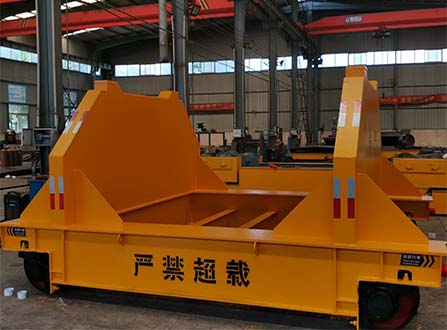

5.According to the ladle ,the table can be different style: Cylindrical , lifting lugs placed racks, U concave etc .
6.Strong powerful brake and load capacity .
7.Simple operation with remote control .
8.The double transmission system is adopted , once one system failed , the other system can complete a process cycle .
9.The traction motor of the ladle transfer cart is soft start and stop slowing to reduce inertia.
10.Power supply to use the torque spring drum or motor cable drum .
| Ladle Transfer Cart | |||||||
| Rated Load(t) | 30 | 50 | 100 | 130 | 150 | 260 | |
| Table | Customized according to the ladle | ||||||
| Travelling Speed(m/min) | 0-30 | ||||||
| Power Supply | Torque spring or motor cable drum | ||||||
| Motor Power(kw) | 2*3.7 | 2*5.5 | 2*18.5 | 2*22 | 2*30 | 2*37 | |
| Wheel Diameter(mm) | 4*Ø600 | 4*Ø800 | 4*Ø800 | 4*Ø800 | 4*Ø900 | 4*Ø800 | |
| Control model | Control box and radio remote control | ||||||
| Positioning | Laser rangefinder and travelling limit switch | ||||||
| Brake | Electric-hydraulic brake | ||||||
| Note: 1.Load capaicty , table size and rail inner gauge can be customized . | |||||||
| 2. Metallurgical variable frequency motor , forged wheel . | |||||||
| 3.Automatic stop when detecting obstacle or person, travelling limit switch . | |||||||

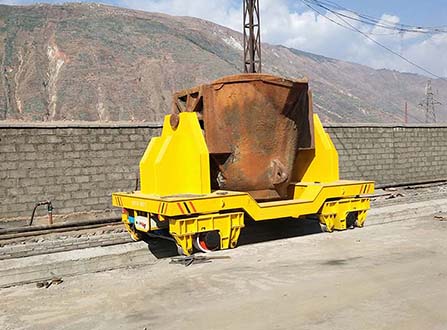

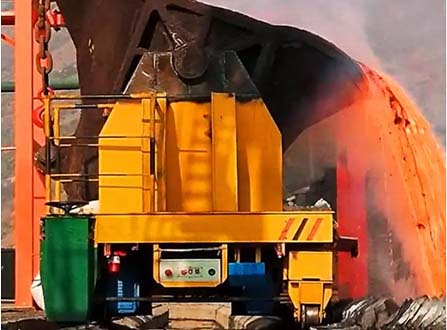

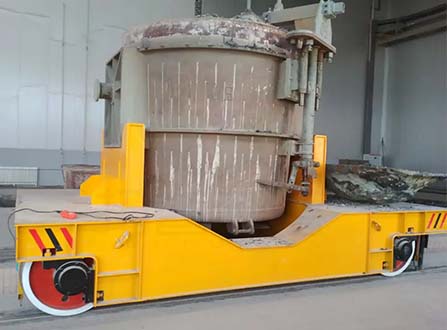

This type transfer cart is mainly used in steel factory to transport the ladle .
