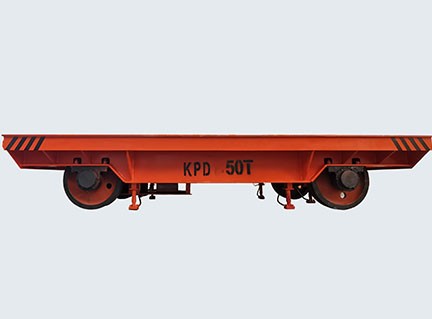

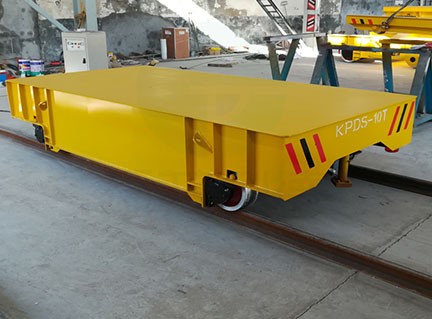

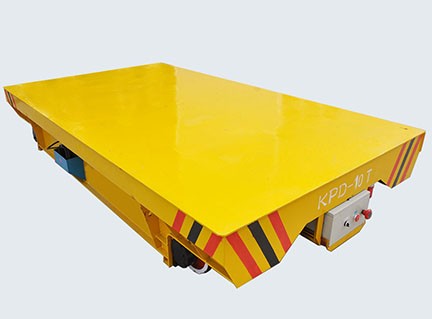

KPD series rail transfer cart is powered by the low voltage electricity from the railways , the power source AC 380V will be transformed into AC 36V on rail into the electrical appliance box at the bottom of the transfer cart . Then the AC 36V is transformed into DC 36V to control the DC motor through the DC control system to make transfer cart start , stop , go forward and go backward , the speed can be adjusted .
The transfer cart can travel on the S or arc-shaped railways , it can also be used in high-temperature environment . The hydraulic lifting device can be installed under the working table . The DC motor has the advantages of safety, flexibility , soft start , big staring torque , small impact to the gearbox , low voltage , long lift span .
This type rail transfer cart has strict requirement on the construction of railways that need to be insulated .The load capacity is not more than 50 tons , it is better to be used in high using frequency and long running distance .When the running distance is more than 70 meters , it needs to increase the transformers to make up the voltage which is lowered .
1.Simple structure , convenient to be used , high mechanic strength and loading capacity.
2.Good stability , no permanent distortion .
3.Capacity is up to 50 tons .
4.Continuous working , there’s no time limitation .
5.Three-in-one drive DC motor , easy to maintenance .
6.Soft start ,Schneider frequency inverter .
7.Warning alarm , anticollision radar , travelling limiter, multiple protection .
8.Multiple operation method: hand pendant cable , radio remote control , roker wireless remote controller .
9.Functional customization: Frequency conversion startup, Explosion-proof occasion, Hydraulic Lifting function, Rollover function, Mesa precision, Fixed-point stop, Scanning radar, positioning accuracy, anti rollover, Load-bearing function, Climbing, Track turning, waterproof treatment, traverse unit, Aisle fork etc .
| KPD Low Voltage Railways Powered Tranfer Cart | ||||||||||
| Rated Load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | |
|
Table Size (mm) |
Length | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 |
| Width | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | |
| Height | 500 | 550 | 550 | 600 | 600 | 650 | 650 | 700 | 700 | |
| Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
| Wheel Diameter(mm) | Ø270 | Ø300 | Ø300 | Ø350 | Ø350 | Ø400 | Ø400 | Ø500 | Ø500 | |
| Wheel Quantity(pc) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
| Running Speed(m/min) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
| Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | |
| Transformer Power(kva) | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | |
| Transformer Qty | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
| Running Distance (m) | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | |
| Max. Wheel Load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | |
| Reference Weight(t) | 2.5 | 3.5 | 4 | 5.2 | 5.6 | 6.2 | 6.5 | 7.3 | 7.8 | |
| Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | |
| Note: 1.Load capaicty , table size and rail inner gauge can be customized . | ||||||||||
| 2.Optional device : Automatic cutting off the power on rail . | ||||||||||
| 3.Automatic stop when detecting obstacle or person, travelling limit switch . | ||||||||||
| 4.Operation method: a .hand held control pendant b.remote radio control c. operation platform with the trolley . | ||||||||||
| 5. Can be designed in harsh environment , such as the high temperature etc . | ||||||||||
The low voltage railways powered transfer cart is widely used in foundry factory , warehouse , steel plant , aluminum factory , plastic pipes factory , metallurgy , shipyard , coal , mining ,mold industry , processing industries etc .
